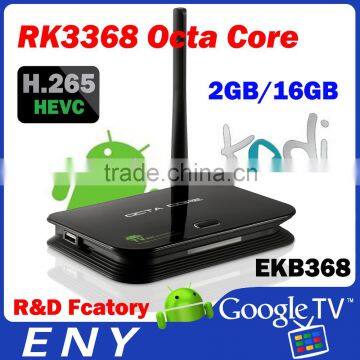

Rockchip RK3368 16GB octa core Bluetooth4.0 rk3368 emmc 2.4GHZ + 5.8G WiFi 802.11 b/g/n/AC (ap6335) android5.1 tv box

Hardware Spec:

Operation System

Android 5.1

Language

Chinese, English...Multi-Language support

Chipset

Rockchip RK3368 octa core Cortex A53 1.5GHz

GPU

PowerVR G6110 GPU with support for OpenGL ES 1.x/2.0/3.1, OpenGL 3.2, DirectX 9.3, OpenCL 1.2 EP, and Renderscript

SDRAM

DDR3 2GB   (Optional:1GB)

Nand Flash

16GB Nand Flash. (Optional:4GB/8G/16G/32G)

Storage Extension

Support MicroSD(TF) ,Up to 32GB

Bluetooth

Blutooth 4.0 (optional)

Network

2.4GHZ + 5.8G WiFi 802.11 b/g/n/AC (ap6335),  LAN 100/1000M Base-T

Power Supply

 DC 5V/2A

Interface:

HDMI Out

1xHDMI(A type Male),HDMI2.0 Full HD 1920x1080P

USB Port

2XUSB Host

Data Output

1xSPDIF

Card Readere

1X Micro SD card (TF card) reader

AV Out

1x3.5mm Headphone Jack

Network

1xRJ45 LAN Port

Power Supply

1xDC Jack(2.1mm)

Antenna

External WiFi antenna

Media Parameter:

Audio Container:

Support MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP…etc Audio formats.Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display.

Audio Out

HDMI Data Output

Video Decoder

MPEG-1, MPEG-2, MPEG-4,H.263, H.264, H.265,AVS, VC-1, MOV, TS, M2TS, RM/RMVB,FLV, 3GP, MPEG, DAT, MP4,VP8,
RV, VP6/VP8, Sorenson Spark, MVC 4K/2K 60FPS

Resolution

Max 4096 X 2304

Image browser

Support JPG,JPEG,BMP,GIF,PNG,JFIF…etc photo format. Maximum resolution

Text-Reading

Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(Depends on APK install).

Software Extension

Support Google Play & APK install.

DLNA,Wimo Protocol

Support DLNA,Wimo Protocol

Remote Control

Support Smart phone remote control,2.4GHZ wireless air mouse/Remote controller.

IM Software

Support Kodi/Netfilx/Youtube/Skype (Depends on APK install)

Offic Software

WORD/EXCEL/PDF(Depends on APK install)

Others Parameters

Operationg Temperature:

-10~40℃

Storage Temperature:

-20~50℃

Humidity environment

5%-90%(No condensation)

Certification

CCC,CE,EMC,FCC, ROHS

Accessory List

1.Standard Package: 1xEKB368,1xAdapter(DC 5V/2A), 1xHDMI Cable ,1x IR Remote Controller,1 x Manual.
2.Optional Package: 2.4G Wireless Air Mouse, 2.4G  Wireless mouse and keyboard,USB Cable
