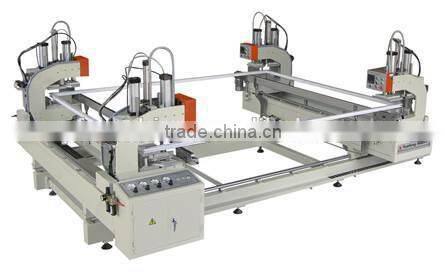

Window and Door Machine/ Four Head Welding Machine/PVC Welder/Horizontal Four Point Welding Machine CNC
- QINGDAO
You May Like
-
Vertical Four Point Welding Machine CNC/Vertical Four Head Welding Machine CNC/PVC Window Welding Machine/Welding Machine
-
Pvc&upvc Windows Doors Machine/CNC Vertical Full Automatic Four Point Welding Machine
-
Window Frame Making Machine,Four- Corner Vertical Welding Machine,PVC Window Making Machine
-
Aluminum Ngle Mitre Saw
-
Aluminum Mulion Saw
-
Aluminum Windows Cutting Machine V-notch Saw
Product Details
| Place of Origin | Shandong, China | Brand Name | YUEFENG | |
| Model Number | SHP4-4300B | Voltage | 380V | |
| Power | 4.5KW | Dimensions | 5100X3500X1800mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

1. The machine applies to PVC window and door processing, can welding rectangle frame and
window sash completely in once.
2 .Compare with four-point welding machine, it can weld win-door mullion, and it has
characteristics of high reliability, wide working range, and easy operation etc.
3. The machine is controlled by PLC, linear guide kinematic pair adopted, high work efficiency.
Packing details: wodden case or according your request
Delivery detail: 15 days after receiving down payment
Model | SHP4-4300B |
Input voltage | 380V 50Hz |
Input power | 4.5Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 280L/min |
Welding height | 20~120mm |
Welding width | ≤120mm |
Welding range | 400×1000~2550×4300mm |
Overall dimension | 5100×3500×1800mm |
