12mm Bent Toughened Glass

12mm bent toughened glass

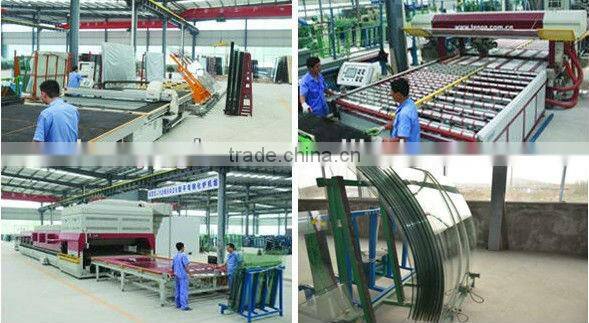

Tempered glass is produced by heating to a softening point in a specific mold and equipment. The glass is rapidly cooled with jets of cold air, including compressive stress to the surface while the center remains tensile.

 Features

         1. Safety: if breakage occurs the glass breaks up into small, cubical fragements, which are not threatening to human.

         2. Stronger resistance to thermal breakage than annealed or heat strengthened glass

         3.4-5 times stronger than annealed glass of the same thickness.

         4. It withstands abrupt temperature change of 220°C.

         5. Sizes are produced per customer request, once tempered, cannot  be cut down

Specification

      Flat tempered glass:

                    Max Size: 6000mm*2440mm

                    Min  Size: 300mm*100mm

                    Thickness:3~19mm

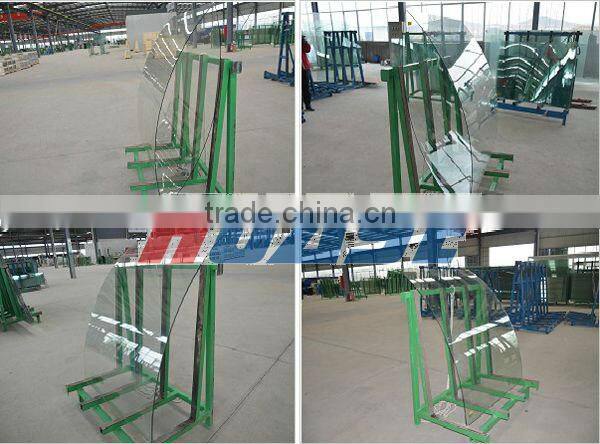

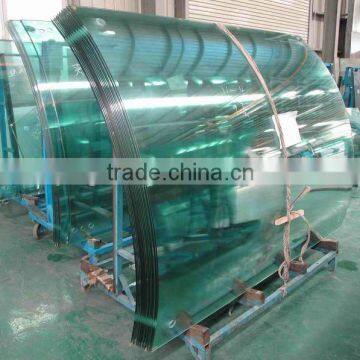

      Curved tempered glass:

                    Min curved radius:

                             1000mm(Thickness: 5~6mm)

                             1200mm(Thickness:8~12mm)

                              2000mm(Thickness:15~19mm)

                     Max Size: 2440mm*3660mm

                     Thickness: 3~19mm

  Application

  It is ideal for areas with high wind loads and areas where human contacts are an important consideration. Such as glass door curtain wall of building, indoor partition, showcase, household appliance,  frontal windows of building, etc.
