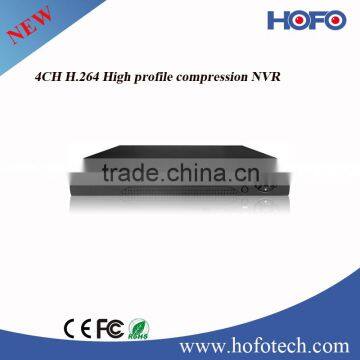

HOFO cctv nvr

System

Model

HFNVR-6804T-F

Main Processor

1 X HI3515A

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup & remote access

Operation interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 High profile

quality supervision

Monitor: D1; VGA: high definition; HDMI: hd

Video Input(IP)

4*960P/8chD1

Video Recording

960P/720P/960H/D1/HD1/CIF/QCIF

Motion Detection

Zones:396(22*18)detection zones, Multi-level sensitivity can be set

(Local channels only)

Audio

Audio Conpression

G711A

Bidrectional Talk

N/A

Record &

Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Playback

1/4channel playback simultaneously

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch,

D1 16~20G/day/ch ; Audio: 691.2M/day/channel

Video saved

Local HDD,network

Backup Mode

Network download/Flash stick/USB/SATA

Interface

Video Input(BNC)

N/A

Video Output

1ch BNC output, 1ch VGA output, 1ch HDMI

Audio Input

N/A

Audio Output

1 channel RCA

Alarm Input

N/A

Relay Output

N/A

Net Interface

RJ-45 10M/100M

PTZ Control

1 RS485

USB Interface

2* USB2.0 port for mouse and backup

Hard Disk

1 SATA port(Max 1 x 4T)

Environmental

Power Supply

12V/3A

Dimension

25.5 x 22.5 x 4.5cm
