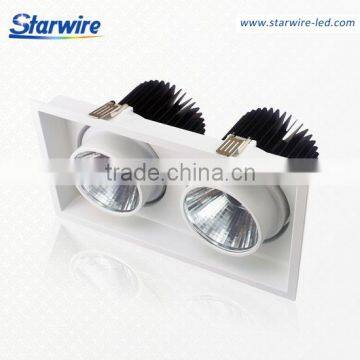

COB Led grille lamp -7w/14w/21w
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| LED Light Source | Array | Warranty(Years) | 2 | |
| Input Voltage(V) | 220 | Lamp Power(W) | 7 | |
| Lamp Luminous Flux(lm) | 520-290 | Lamp Luminous Efficiency(lm/w) | 82 | |
| Color Temperature(CCT) | Other, 2700-6500 | Working Temperature(℃) | -20, 65 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CE | |
| Model Number | SW-GS-A07-01XX | Place of Origin | Guangdong, China | |
| Brand Name | Starwire |
Product Description
Specifications
1.Provide 25/40/60 angles2.High quality drivers with SAA, CE, RoHs, FC.
ed for replacing Traditional lamp
Led Grille Lamp COB
Led Grille Lamp adopts advanced packaging technology of COB LED as light source.Led Grille Lamp
can save 80% than metal halide lamp with the equal effect and the Lifespan can be up to 35000hrs;
The feature of Min maintenance cost and Max energy saving effect, especially suitable for commercial lighting,
such as Mall stores, Department supermarket, Exhibition Hall and Hotel, which need to create a focus lighting place.
The COB Grille Lamps are ideal replacement to traditional grille lamps.
Item No: SW-GS-A07-01XX
Productivity: 100000 Set/Month
Shipment Terms: EXW /FOB Shenzhen
Minimum Order: 50pcs
Certification: CE&RoHs
Input Voltage | 85-260V |
Operating frequency | 40-60Hz |
Power Dissipation | 7W |
Power factor | > 0.9 |
Operating Temperature | -200C ~ +500C |
Storage Temperature | -300C ~ +800C |
LED Quantity per lamp | 1 pcs |
LED Type | 7W LED COB |
Product Size(mm) | L123mm*W123 *H80mm |
Net Weight | 327g |
Cutout size | 110*110mm |
Adjustable Angle | 25o |
Body color | Matte white |
Protection Level | Non-Waterproof |
Estimated Life [1] | 30,000 hrs |
Certifications | CE & RoHS |
Features:
l This is designed for replacing Traditional Lamp.
l High Light efficiency, saving energy, long Lifespan: 30,000 hours
l High Light efficiency, saving energy.
l Low cost of maintenance.
l No UV or IR light radiation.
l Special designed COB technology and aluminum heat sink to prevent degeneration caused by heat.
l High quality drivers with SAA, CE, RoHs, FC certificates.
l Provide 25º/40º/60º beam angles, Can adjustable the irradiation angle: 25 degrees.
l Even Lighting, Non-Halation.
Applications:
l Mall center lighting.
l Corridor lighting.
l Home lighting.
l Hotel lighting.
l Other Indoor lighting.
Part No. | Emitting Color | Color Temp(K) /Wavelength(nm) | Luminous Flux(lm) | Color Render Index | Bean Angle (Degree) |
SW-GS-A07-01WW | Warm White | 2800-3200 | 510 | >80 | 25° |
SW-GS-A07-01NW | Nature White | 4000-4500 | 580 | >80 | 25° |
SW-GS-A07-01CW | Cool White | 6000-6500 | 590 | >80 | 25° |
