5W COB LED DOWNLIGHT,COB Led Lamps
- ShenZhen
You May Like
Product Details
| LED Light Source | Cree | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100-240V | Lamp Power(W) | 5 | |
| Lamp Luminous Flux(lm) | 660 | Lamp Luminous Efficiency(lm/w) | 66 | |
| Color Temperature(CCT) | Other, 3000K/4000K/5000K | Working Temperature(℃) | -10, 50 | |
| Working Lifetime(Hour) | 35000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CCC | |
| Model Number | sw-cl00-906 | Place of Origin | Guangdong, China | |
| Brand Name | starwire |
Product Description

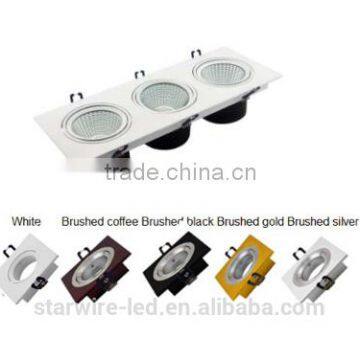

5W COB LED DOWNLIGHT,COB led lamps
Applications:

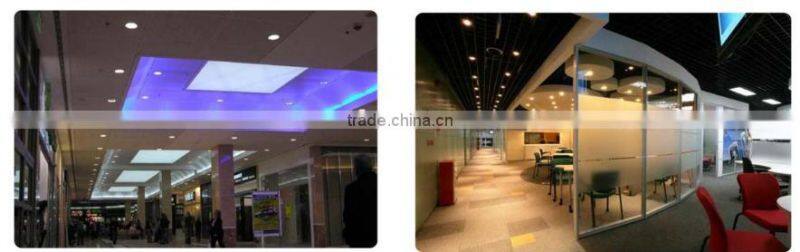

Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting

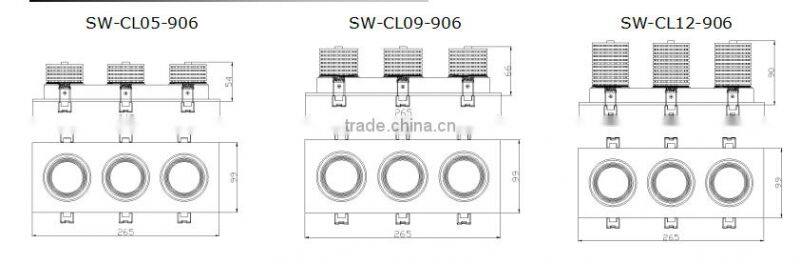

Dimensions(unit: mm):
Parameter Part I:
Model | SW-CL05-906 | SW-CL09-906 | SW-CL12-906 |
Input Power | 15W± 10% | 27W± 10% | 36W± 10% |
Input Voltage | See driver input | ||
LED Current | 3 x 350mA | 3 x 200mA | 3 x 250mA |
Light Source | Cree CXA1304 COB | Cree CXA1507 COB | |
CCT | 3000K/4000K/5000K | ||
Beam Angle | 15º/25º/60º | 13º/20º/30º/40º | |
CRI | >80 | ||
Model | SW-CL05-906 | SW-CL09-906 | SW-CL12-906 |
Product size | L265*W99*H54mm | L265*W99*H66mm | L265*W99*H90mm |
cut out | L240*W75mm | ||
IP Rate | IP20 | ||
Adjustable direction | Two directions | ||
Surface color | White | ||
Working ambient temperature | -10 ~ 50℃ | ||
Model | SW-CL05-906 | SW-CL09-906 | SW-CL12-906 |
Product size | L265*W99*H54mm | L265*W99*H66mm | L265*W99*H90mm |
cut out | L240*W75mm | ||
IP Rate | IP20 | ||
Adjustable direction | Two directions | ||
Surface color | White | ||
Working ambient temperature | -10 ~ 50℃ | ||
Non-dimmable | ||
SW-CL05-906 | SW-CL09-906 | SW-CL12-906 |
Brand: Eaglerise
Item No:EBP003C0350SS Input: 176-264VAC Output:2.8-12V / 350mA±5%
Insulation: Class II PF>0.8 Efficiency>70% | Brand: Eaglerise
Item No:EIP008C0200LS0 Input: 176-264VAC Output:20-40V / 200mA±5%
Insulation: Class II PF>0.8 Efficiency>80% | Brand:Philips
Item No: CertaDrive 10W 0.25A 40V I 230V
Input: 202-254VAC Output:32-40V / 250mA±10% Insulation: Class II PF>0.85
Efficiency>80% |
| Brand:Philips
Item No: CertaDrive 8W 0.2A 40V 1 230V Input: 202-254VAC Output:32-40V / 200mA±10%
Insulation: Class II PF>0.85 Efficiency>80% |
|
Dimmable (for triac phase control dimmer) | ||
SW-CL05-906 | SW-CL09-906 | SW-CL12-906 |
Brand: Starwire Item No: AD03D Input: 200-240VAC Output:8-11V / 350mA±5%
Insulation: Class II PF>0.9 Efficiency>68% | Brand: Starwire
Item No: SW08C0200D Input: 200-240VAC Output:30-42V / 200mA±5%
Insulation: Class II PF>0.9 Efficiency>72% | Brand: Starwire
Item No:SW10C0250D Input: 200-240VAC Output:30-40V / 250mA±5%
Insulation: Class II PF>0.9 Efficiency>72% |
Company Profile
Shenzhen Starwire Lighting Co., Limited was set up in 2009. Now we focus on two products: LED Strip Light & LED Down Light. We have two project department specializes in these two categories of products. Our annual turnover is 10 million US dollars. Now we have 3600 square meter factory and over 100 workers.
Our company provide diversified trade service with professional level and high quality to customers, with the enterprise spirit of “passion , honest and quality” and the purpose of “customer first” to develop new markets and serve for customers. We created prominent operation performance, enjoyed good business reputation.

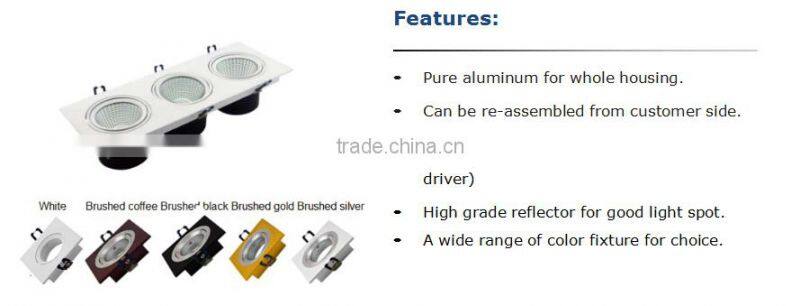

Our Advantages : Why Starwire COB LED downlight:
Driver & COB Chip:
1, Brand driver compatible: All starwire downlight has standard 200mA/350mA/500mA/700mA/1050mA input current, which are compatible with most of brand
driver, such as Tridonic, Philips, Osram, Meanwell, Eaglerise and so on.
2 COB led 17*34 COB
1, Goniophotometer ( Brand: Everfine, with 3.5m x 12m dark room, can generate IES document)
2, Quality LED chip: Orignal Cree/Citizen COB, original Samsung 5630 led, Mainland encapsulated epistar chip COB.

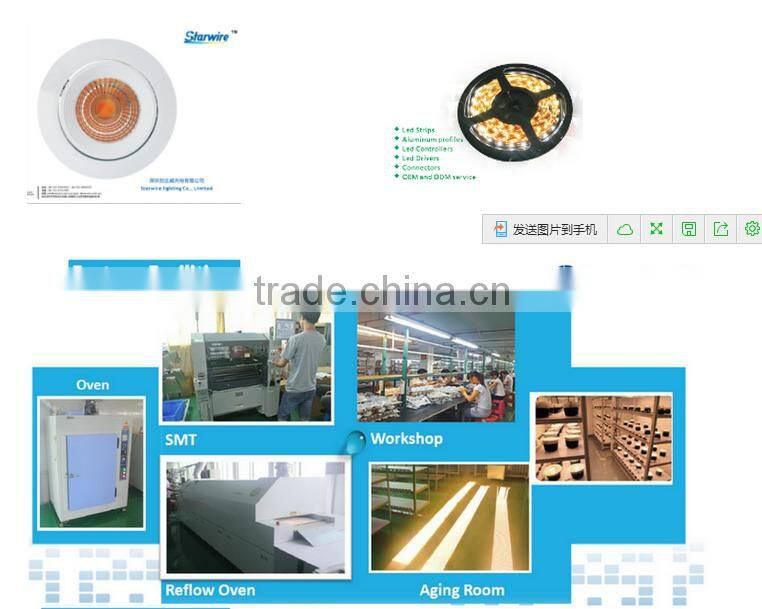

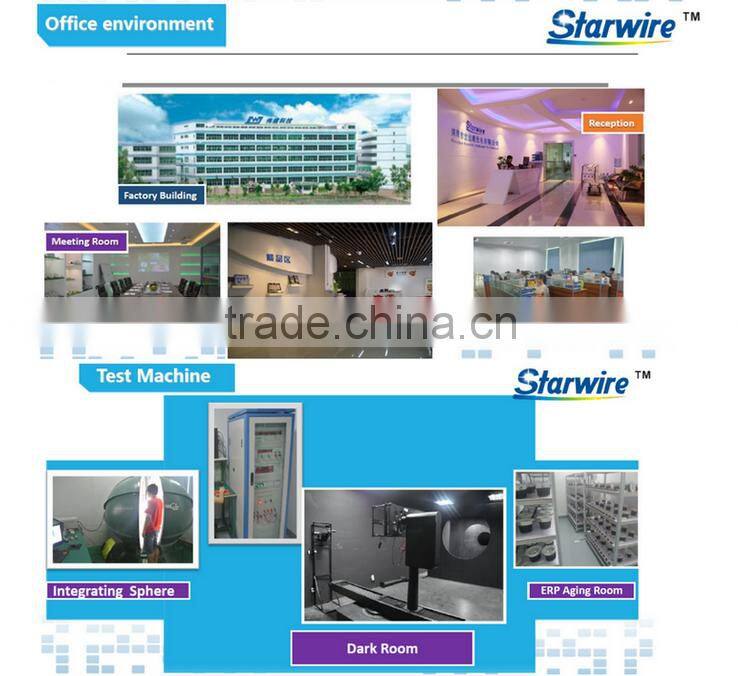

Test Facility:
2, Integrating sphere ( Brand: Everfine, 1.7meter diameter)
3, ERP aging test room ( approvalled by TUV Rheinland)
Certification:
CE & ROHS ( approvalled by TUV Rheinland) , SAA
Option:
1, RA80 standard, RA90 RA95 is available.
Your inquiry is highly appreciated and will be replied in time!
How to Contact
Rest assured, Don’t Panic! We are here to be at your serive, always :) We work around the clock to deliver an exceptional customer experience and endeavour to be of assistance via following ways. Try us :)
Tel: 0086-755-27609413
Skype: christy06071
Looking forward to hear your further information O(∩_∩)O
