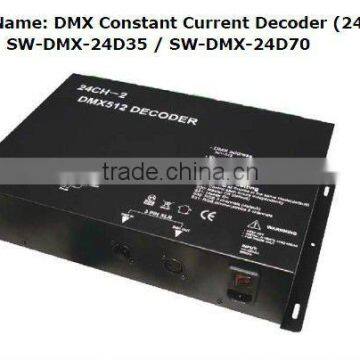

DMX 512 Decoder RGB for LED Strip

Specifications

*Summarization
DMX Constant controller adopts the advanced micro control unit, it receives standard DMX-512 digital
control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX
digital console to achieve dimming or various changes in procedures.

*Technical Parameters
1. Working temperature: <40 °C
2. Supply voltage: AC115V-230V
3. Output: 24 channels
4. External dimension: L358XW251XH89(mm)
5.Output current: each channel 350mA / 700mA
6. Output power: <300W

* Direction for use

1. DMX address code setting
When no DMX signal access,digital tube will display“S--”,press “Menu”key,it will display DMX address
code currently.Press Up or Down modify DMX address code(001-512).
Static color selection
Press Menu button again on the DMX address code mode,and enter static mode selection .There are 20
kinds static modes,grade fromC01 to C20,can cross Up or Down switch.

2. Gradient mode selection
Press Menu button on the static address code mode, and enter gradient mode selection .There are 9 kinds
gradient modes. grade from F01 to F09,can cross Up or Down switch.Press 3 seconds on the mode,and
enter velocity gradient modifies the state .grade from 01~99,01 is fastest,99 is slowest. Again press the “
Menu” button to confirm and return.

3. DMX mode selection
When digital tube display “S”, Press Up or Down keys to select the appropriate DMX mode (S1x, S2x, S3x
independent of each other, Sx0 with Sx1 two opposites, the two can only choose one.Press Menu button to
confirm and exit. DMX signal when there is access to DMX lights flashing, DMX signal disconnected (for the
signal line is set aside or switch to the host state), signal eliminate
S10:With the control units for all ports on the Port light to conduct an overall controll (power-on default
state)
S11:Console ports of different Prot independent control of the lamp.

4. Warning:
Do not place this product under humid air or rain,pool water may be product damage.
The installation and operation of the equipment to prevent the violent shock;non-professionals,not the
equipment to be demolished.
Supply voltage of this product is AC115V~230V other high voltage would most probably destroy it .
Warranty of this product is one year, in this period, we guarantee replacement or repairing with no
charge,but exclude the artificial situation of damaged.

350mA / 700mA
