Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | 0.6/1kv 8.7/15KV 26/35kV | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

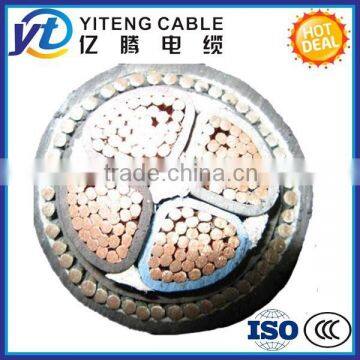

Low Voltage CU/XLPE/SWA/PVC electric cable
Low Voltage CU/XLPE/SWA/PVC electric cable
Conductor:
Solid or stranded Copper/Aluminum
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Circuit Indentation:
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)
-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards:
IEC 60502-1
Nominal Cross-sectional Areas:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
Specification:
· The highest rated working temperature: 90 °C, the highest conductor short-circuit temperature: 250°C.
· Excellent electrical performance, resistance to chemical corrosion.
· They can stand advisable traction when laid.
· Can stand traction from Outside.
· Left low smoke halogen-free after burned.
· Retard the burning of the cable.
· Used in construction, industrial,underground,mining,power station,railway.
Type and Data
Type | Designation | Applications |
YJV | Copper conductor,XLPE insulated,PVC sheathed power cable | For laying indoors,in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct. |
YJLV | Aluminum conductor,XLPE insulated,PVC sheathed power cable | |
YJY | Copper conductor, XLPE insulated,PE sheathed power cable | |
YJLY | Aluminum conductor, XLPE insulated,PE sheathed power cable | |
YJV22 | Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct. |
YJLV22 | Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable | |
YJV23 | Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
YJLV23 | Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable | |
YJV32 | Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force. |
YJLV32 | Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable | |
YJV33 | Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable | |
YJLV33 | Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable |
Our Products
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
