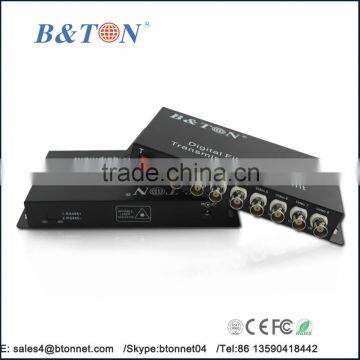

Fiber Optic Converter 16 Channel Digital Video Optic Converter / transmitter and receiver for CCCTV video survillance
USD $1 - $30
/ Pair
1 Pair(Min.Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
1/2/4/8/16/32 channel video fiber optical BNC to UTP converter,with Audio Data Ethernet function
-
1/2/4/8/16 Channel Video Fiber Optical BNC to video converter
-
digital video audio fiber optical converter for CCTV security
-
video converter Fiber Optic Transmitter & Receiver. 1CH Video Audio + Data + Fiber Port. Single Fiber
-
4ch optics analog video converter
-
video optical fiber converter 4port
Product Details
| Place of Origin | Guangdong, China | Brand Name | BTON | |
| Model Number | BT-1V1DF-T/R |
Product Description
Digital Fiber Optical Video Converter ,1/2/4/8/16/32 Channels,with Audio+ Data+Ethernet
| Specification |
| Video |
| Non-compression and no-distortion |
| Video standards: PAL/NTSC/SECAM |
| Frequency Response: 8MHz |
| Video connection: BNC |
| Signal to Noise Ratio: > 65dB |
| Optical |
| Optic wavelength: 1310/1550nm |
| Optic interface: FC/SC/ST(optical) |
| Supported |
| single mode: 9/125, multimode: 50,62.5/125 |
| Path Loss: 20dBm |
| Audio |
| Audio width: 20Hz~20KHz |
| Signal to Noise Ratio: > 85dB |
| Data |
| Data interface: RS-232, RS422 (full duplex), RS485 (half duplex) Manchester, Bi-phase |
| Data rate per channel: Up to 512kb/s |
| BER: <10-9 |
| General |
| power supply: DC5V/1A( optional) |
| operating temperature: -35°C~70°C |
| operating humidity:0~95% |
| Dimension |
| Stand alone: 105(L)×104(W)×28(H)mm |
| Color: Black |
| Material: Iron shell |
| Model | Description | Optical interface | Transmission distance(km) | Fiber Type |
| BT-1VF-T/RS | 1-channel video | FC ( optional SC/ST ) | 20 to 80 | Single or multimode |
| BT-1V1DF-T/RS | 1-channel video and 1-channel data | |||
| BT-2VF-T/RS | 2-channel video | FC ( optional SC/ST ) | 20 to 80 | Single or multimode |
| BT-2V1DF-T/RS | 2-channel video and 1 channel data | |||
| BT-4VF-T/RS | Mini 4-channel video | FC ( optional SC/ST ) | 20 to 80 | Single or multimode |
Products Display
BTON Company
Factory Display
Testing and Olding
Certificates
