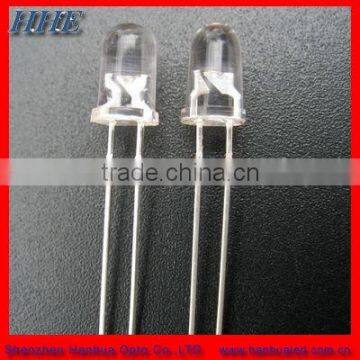

With long leg and flange 3mm BULLET led diode

Place of Origin	Guangdong, China		Brand Name	HHE
Model Number	HH-3A0CDWC		Type	Signal Diode
Package Type	Through Hole		Max. Forward Voltage	3.6V
Max. Reverse Voltage	1.7V		Max. Forward Current	20mA
Max. Reverse Current	10μA

Specifications

3mm BULLET led diode
Low light decay,
long life time, energy saving diode
High quality with competitive price

With long leg and flange 3mm BULLET led diode



Features:



3ACHHRC-0		GaAllnp/GaAsP	Red	620-665	water clear	1.8	2.5	300	7000	13
3ACHHGC-0		GaAllnp/GaP	Yellow green	565-575		1.8	2.5	100	3000
3ACHHYC-0		GaAsp/GaAllnP	Yellow	580-595		1.8	2.5	500	7000
3ACHHOC-0		GaAsp/GaAllnP	Orange	600-610		1.8	2.5	500	7000
3ACHHBC-0		InGaAIN	Blue	450-480		2.7	4	2000	8000
3ACHHGC-0		InGaA	Green	500-540		2.7	4	3000	60000
3ACHHWC-0		InGaAIN	White			2.7	4	3000	20000



1) Highest flux

2) More energy efficient than incandescent and most halogen lamps

3) Low voltage DC operated

4) Fully dimmable

5) No UV

6) Superior ESD protection

7) Eutectic die bonding

8) Low light decay: under 5% of first 1000 hours.

9) Size: 3mm

10) View angle:100

11) Colors available: various(Blue, Red, White,, Green,Yellow, Orage,Yellow-green)

12) Angles: different angels

13) Brightness: different luminous intensity

14) Lens color: water clear or with color, color diffused, color transparent, white

Diffused

15)Availiball size:2mm,3mm,5mm,8mm,10mm,20mm

16)Peak wave length (nm):

    a) Blue: 450-475

     b) Red: 620-660

     c) White: 0.28-0.33

    d) Green:500-540

    e) Yellow: 580-595

    f) Orage: 600-610

    g) Yellow-green: 565-575

 17)Luminous intensity (MCD):

a) Red: 500-12000

b)Yellow-green:80-2000

c) Yellow: 600-12000

d) Orage:600-12000

e) Blue: 800-10000

f) Green: 3000-15000

g) White: 3000-20000

18)Applications: Lighting, Channel Letter,  Logo traffic signal light, automobile backdrops  , craft flashlight, headlights,the wider direction,display of big screen and so on.
