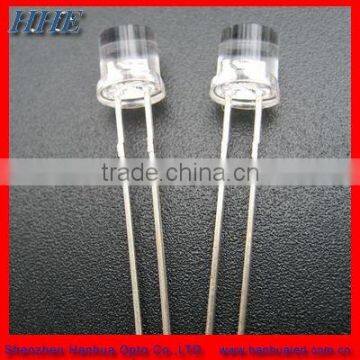

With long leg 5mm FLAT TOP led diodes

Place of Origin	Guangdong, China		Brand Name	HHE
Model Number	5TCHHGC-0		Type	Signal Diode
Package Type	Through Hole		Max. Forward Voltage	3.6V
Max. Reverse Voltage	1.7V		Max. Forward Current	20mA
Max. Reverse Current	10μA

Specifications

5mm flat top led lamp diode;
Low light decay.
long life time, energy saving led lamp
High quality with good price,

 With long leg 5mm FLAT TOP led diodes



Features:



1) Highest flux

2) More energy efficient than incandescent and most halogen lamps

3) Low voltage DC operated

4) Fully dimmable

5) No UV

6) Superior ESD protection

7) Eutectic die bonding

8) Low light decay: under 5% of first 1000 hours.

9) Size: 3mm

10) View angle:100

11) Colors available: various(Blue, Red, White,, Green,Yellow, Orage,Yellow-green)

12) Angles: different angels

13) Brightness: different luminous intensity

14) Lens color: water clear or with color, color diffused, color transparent, white

Diffused

15)Availiball size:2mm,3mm,5mm,8mm,10mm,20mm

16)Peak wave length (nm):

    a) Blue: 450-4

     b) Red: 620-660

     c) White: 0.28-0.33

    d) Green:500-540

    e) Yellow: 580-595

    f) Orage: 600-610

    g) Yellow-green: 565-575

 17)Luminous intensity (MCD):

a) Red: 80-500

b)Yellow-green:50-300

c) Yellow: 100-500

d) Orage:100-500

e) Blue: 150-800

f) Green: 300-1500

g) White: 300-2000

18)Applications: Lighting, Channel Letter,  Logo traffic signal light, automobile backdrops  , craft flashlight, headlights,the wider direction,display of big screen and so on.



Part number

chip

Lens color

Vf(v)=20mA

IV(mcd)If=20mA

Angle

sample brightness

sample price(USD)

Material

Emitted color

Wave lenth

Min

Max

Min

Max

5TCHHRC-0		GaAllnp/GaAsP	Red	620-665	water clear	1.8	2.5	80	500	80	150-250	0.0187
5TCHHGC-O		GaAllnp/GaP	Yellow green	565-575		1.8	2.5	50	300		100-150	0.016
5TCHHYC-0		GaAsp/GaAllnP	Yellow	580-595		1.8	2.5	100	500		150-250	0.0195
5TCHHOC-0		GaAsp/GaAllnP	Orange	600-610		1.8	2.5	100	500		150-250	0.022
5TCHHBC-0		InGaAIN	Blue	450-480		2.7	4	150	800		300-400	0.022
5TCHHGC-0		InGaA	Green	500-540		2.7	4	300	1500		700-800	0.022
5TCHHWC-0		InGaAIN	White			2.7	4	300	2000		800-1000	0.026
