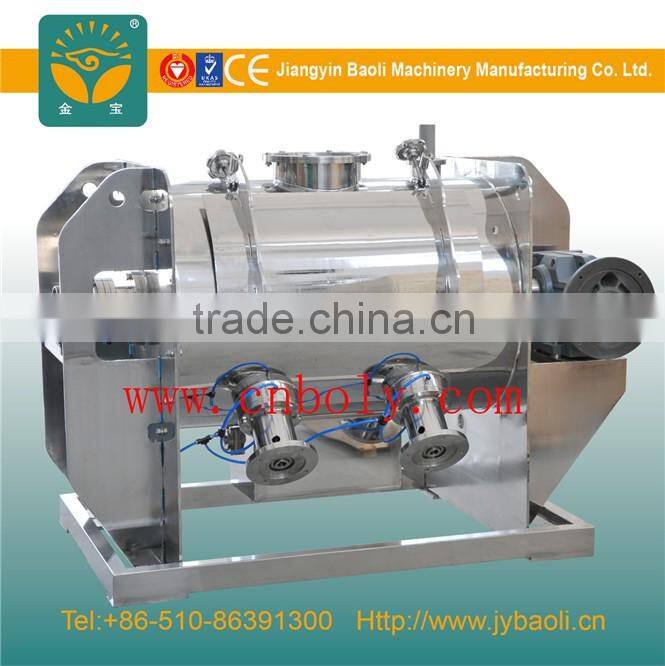

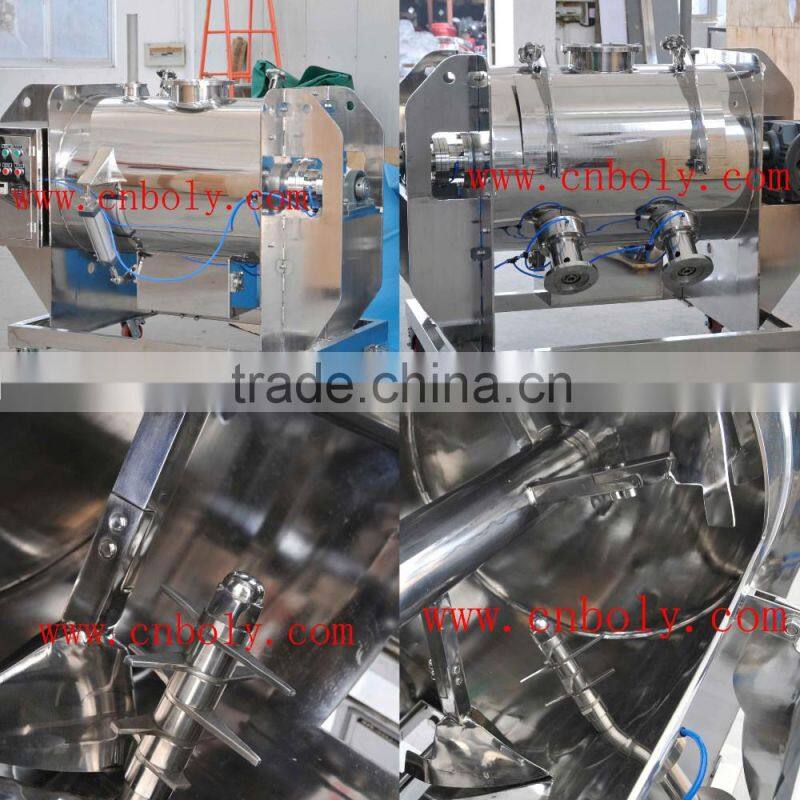

Flavor Plough Shear Mixer With Spraying for Sale

 C: data sheet

C. Standard configuration:
1. Drive Unit: Cycloid reducer or gear reducer
2. Motor brand: Siemens (made in China)
3. Gear box brand: Chinese Famous brand (Huaxing)
4. Bearings: Chinese Famous brand
5. Discharging valve: pneumatic flap valve (no dead angle when mixing).
6. Main Shaft Seal
Air-purged seal and stuffing seal for powder material
Mechanical seal for liquid material
7. Voltage and Hz
380V 3Phases 50hz or in accordance with it in the using place
8. Top Cover
Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers
9. Normal duty type: start the mixer first and then load the material
10. Surface treatment: painting, polishing, passivation, blasting, acid-picking and so on
11. Packing in pallet or wooden case

D.Additional configuration:
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so on
2. Bearings: NSK/TNT and so on
3. Heating/cooling jacket: water, oil, steam as the cooling or heating medium
4. Spraying system
5. Heavy duty type ( loading your material into the mixer first and then start the mixer)
6. Platform: we build the platform for you or we design it and you build it locally
7. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
8. Customizing according to client’s specific requirement

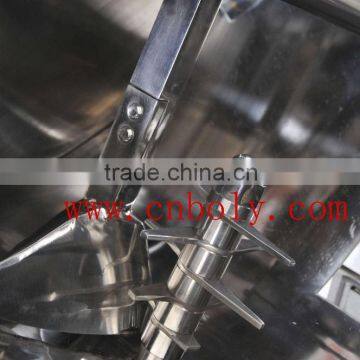

9. High speed choppers can be added inside the mixing tank to promote the mixing effect

E: major parameters for technology selection

1. powers name and character (mesh and density)

2. output per batch

3. stainless steel 304/316LL or carbon steel

4.the electrialenviroment in machine's using place

F: mixers need to be customized according to the different cases, the cases are as below:
1. Agglomerated material larger than 5mm is contained in the raw material
2. Bulk density of the raw material bigger than 3kg/l
3. Materials that are easy to get damp and not allowed to be exposed to the atmosphere, the mixer need to be vacuumized or negative pressure
4. Fill compressed air to the mixer barrel, and keep the pressure
5. Material with a large friction coefficient, mixer need to do a special Wear-resistant surface treatment
6. Material is not allowed to contact with the metal surface during mixing process
7. Mixer need to be heated up to 200 Celsius degree
8. Heavy duty (loading material into mixer before turning on it) is required.

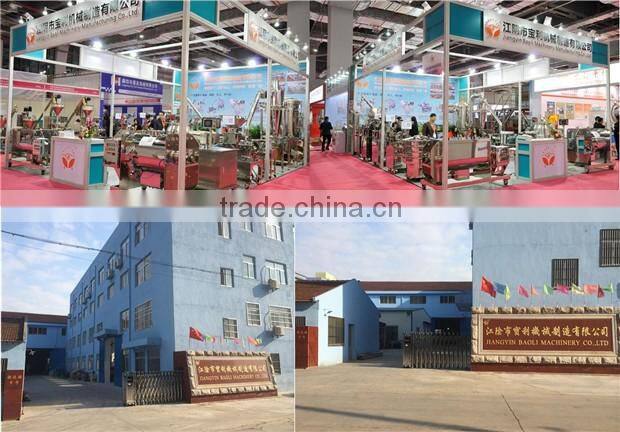

Company information
