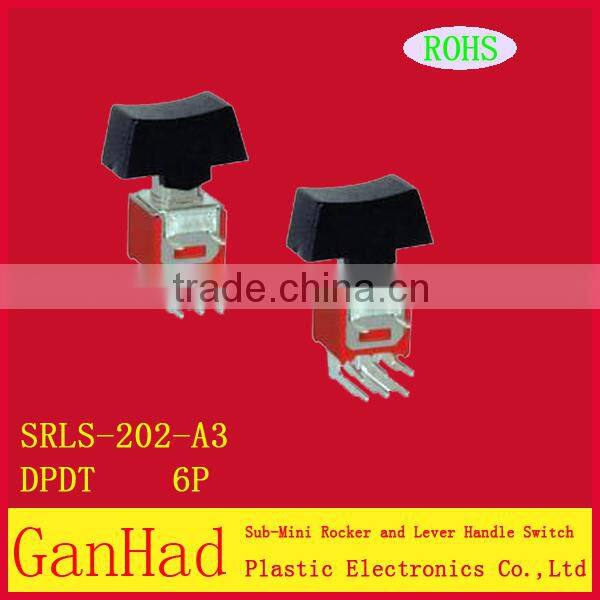

Big Head Toggle Switch Cap
- HK OR SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | SRLS-202-A3 | Max. Current | 1.5A 250V AC | |
| Max. Voltage | 3A 125V AC | Mechanical Life | 20000 |
Product Description
Specifications
1.18 years manufacturing experience2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement
Specification: Contact Rating: 1.5A 250V AC: 3A 125V AC Current Resistance : 20mΩ Max Insulation Resistance : 500V DC 1000mΩ Min Dielectric Strength : 1500V AC,1 Minute Operating trmperature : -55°C--+85°C Electrical life : 20000 Cycles Housing : PBT UL94V-0 Terminals: Silver-plated Brass
|
More About Ganhad Switch.
· 1.25 Years' experience of Manufacture.
· 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
· 3.Original manufacturer with direct factory price, Competitive & Fashionable.
· 4.High Standard management for quality control.
· 5.Small order acceptable: 1000pcs are welcome.
· 6.Safe payment terms: T/T, Western Union, Paypal are available.
· 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
· 8.OEM available, Customers' designs are warmly welcome.
· 9.Excellent Service.
...
