Product Details
| Place of Origin | Guangdong, China | Brand Name | GanHad | |

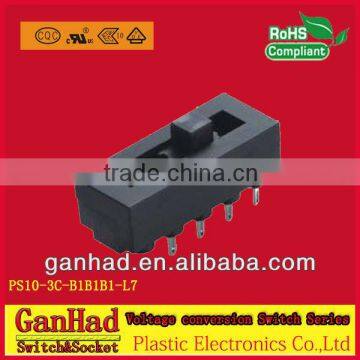

| Model Number | PS10-3C-B1B1B1-L7 | Max. Current | 10A | |
| Max. Voltage | 250V |
Product Description
Specifications
Certificate UL cUL VDE ENEC CQC ROHSSpecifications:
Rated Load: 10A 250V AC
12A 250V AC
12A 125V AC
6(2)A/250V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 6000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤85°C
Working force: 550±250gf
Main material: Body and actuator: PA66
Terminals and movable contact :Brass
...
