Home > Products > Rocker Switch series > Single Rocker switch&lighted 16A/250Vrocker switch

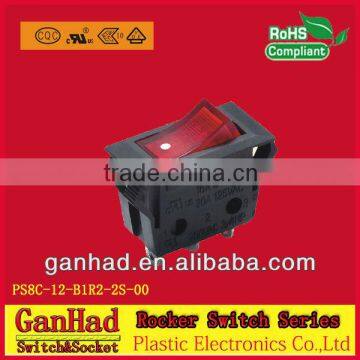

Single Rocker switch&lighted 16A/250Vrocker switch
- 100000 Piece / Pieces per Month
- ShenZhen OR Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | PS8A-12-B1R2-2S-00 | Max. Current | 20A 125V | |
| Max. Voltage | 16A 250V | Mechanical Life | 100000 |
Product Description
Specifications
1)Samples are available within 10pcs2)Certificate UL cUL VDE ENEC CQC
Rated Load: 16A 250V AC 1/4HP
20A/125V 1/4HP 250VAC 3/4HP
166(4)A 250V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 100000 cycles
Electrical life 10000 cycles
Switch for the environmental protection:
Terminals type: Quick contact and soldering
Working temperature: ≤105°C
Working force: 750±300gf
Main material: Body : PA66
Actuator: PA66 OR PC
Terminals and movable contact : Brass
Certificate : UL cUL VDE ENEC CQC ROHS
