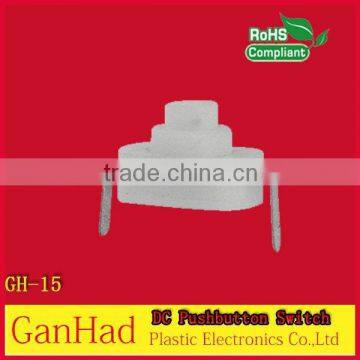

electrical switch button

Specifications

  Specifications:

Rated  Load:                                8A /128A  250V AC

                                                     TV-5

Initial contact resistance:              50mΩ max.

Insulation resistance:                   100MΩ

Withstand voltage                       1500VAC for terminal to terminal 1 minute

                                                    3000VAC for terminal to body 1 minute

Mechanical life:                           100000 cycles

Electrical life                                10000 cycles

Switch for the environmental protection:

Terminals type:                           quick contact and soldering

Working temperature:                  ≤85°C

Working force:                             550±250gf

Main material:                             Body  PF

                                                    actuator PBT

                                                   Terminals and movable contact :Brass

...

More About Ganhad Switch.

• 1.25 Years' experience of Manufacture.
• 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
• 3.Original manufacturer with direct factory price, Competitive & Fashionable.
• 4.High Standard management for quality control.
• 5.Small order acceptable: 1000pcs are welcome.
• 6.Safe payment terms: T/T, Western Union, Paypal are available.
• 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
• 8.OEM available, Customers' designs are warmly welcome.
• 9.Excellent Service.
