Home > Products > Push button switch > Superior quality DC 6 pin push button switch PS22E05
Superior quality DC 6 pin push button switch PS22E05
USD $0.15 - $0.25
/ Piece
10000 Pieces(Min. Order)
- ShenZhen OR Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ganhad | |
| Model Number | PBS-22E1 | Max. Current | 15A 125V | |
| Max. Voltage | 10A 250V | Mechanical Life | 100000 |
Product Description
Specifications
1. Superior quality DC 6 pin push button switch2Comply with ROHS/HF;
3Design as requirement.Superior qualit

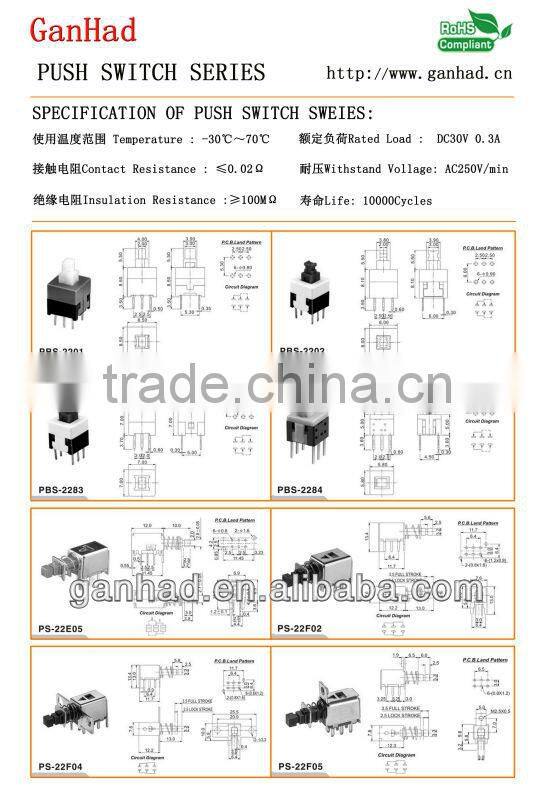

Specifications:
| Temperature : | -30°C~70°C |
| Contact Resistance : | ≤0.02Ω |
| Insulation Resistance : | ≥100MΩ |
| Rated Load : | DC30V 0.3A |
| Withstand Vollage: | AC250V/min |
| Life: | 10000Cycles |

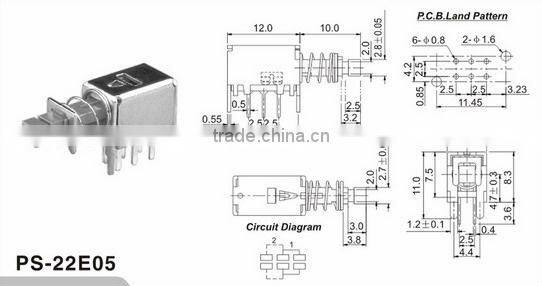

Drawing:
Our advantage :
1. Superior quality DC 6 pin push button switch
2 Comply with ROHS/HF;
3Design as requirement.Superior qualit
Packaging standards:
About the sample:
All samples requested by customers are delivered within 3days after confirming, and Samples are available within 10-15pcs. Offering anytime without delay by email,fax or air post.price is based on the demand quality per lot,newest products brochure is offered to clients per year.
Our Factory picture :
...
