8Pin Red DIP Switchs/Horizontal 8Pin 2.54 Pin Distance Dip Switch With ROHS
- ShenZhen OR HongKong
You May Like
Product Details
| Place of Origin | China | Brand Name | Ganhad | |
| Model Number | CY-2-3P | Max. Current | 25 MA | |
| Max. Voltage | 24V DC |
Product Description
Specifications
Twin contact designed to ensure stable contact.Highly resistant to physical shock&vibration.All materials are UL 94V-0 grade.Specification:
Contact Resistance : 1000mΩ
Insulation Resistance : 100mΩ/DC500V
Withstanding Voltage : 500V AC/1 Min
Operation Temp : -20°C-+85°C
Operation Force : 400gf max
Mechanical Life : 2000 Operations Min
Housing : PBT UL94V-0
Terminals: Gold-plated phosphor bronze

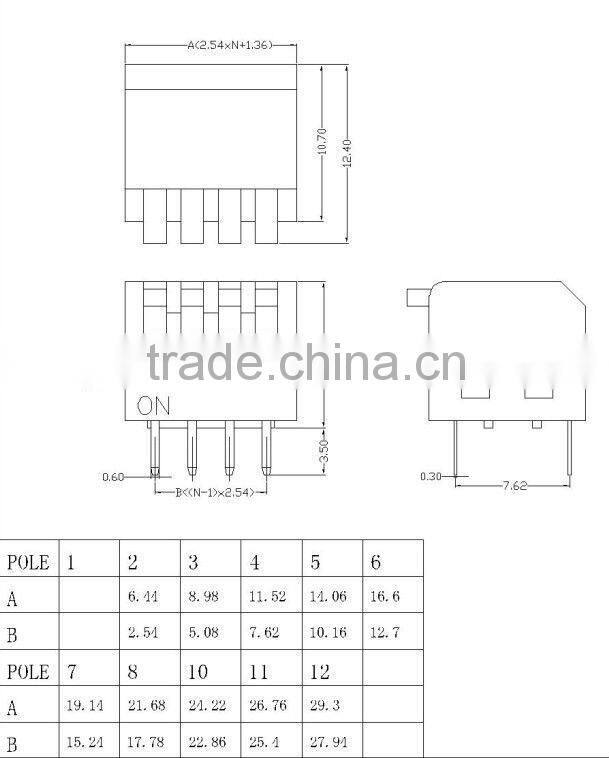

The following dimensions for general reference calculation size chart public. Such as the need for detailed information please contact our company.
...
