Farm Disc Harrrow Blade for Sale
- qingdao tianjing guangdong shanghai
- T/T
You May Like
Product Details
| Type | Blades | Use | Cultivators | |
| Place of Origin | Shandong, China | Brand Name | ali disc harrow | |
| Model Number | all type |
Product Description
Main Features:
Good Elasticity
High Hardness
Excellent Wear Resistance
Short Delivery time
Competitive price
Main manufacturing process:
(1) Cutting materials
(2) Heat treatment
(3) Pressure type
(4) Quenching
(5) Tempering
(6) Baking varnish

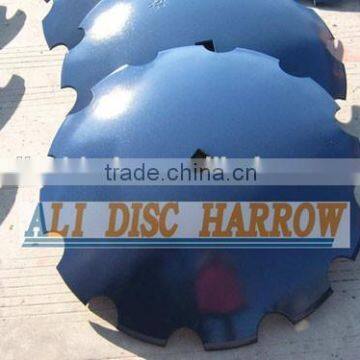

1. Product Name: Harrow Disc Blade
2. Brand Name: Ali Disc Harrow
3. Certification: ISO9001-2008
4. Applications: Harrow and Plow
5. Material: 65MN
6. HRC: 38-45
7. Diameter: 254-810mm
8. Thickness: 3-12mm
9. Edge type: plain, notched
10. Hole: square, round, or combined ones
11.Color:Black ,Red ,Blue,and so on
12. Details please refer to the parameter
13. About us:
We are a well-established company and reliable leader in agricultural machinery and accessories
in China.

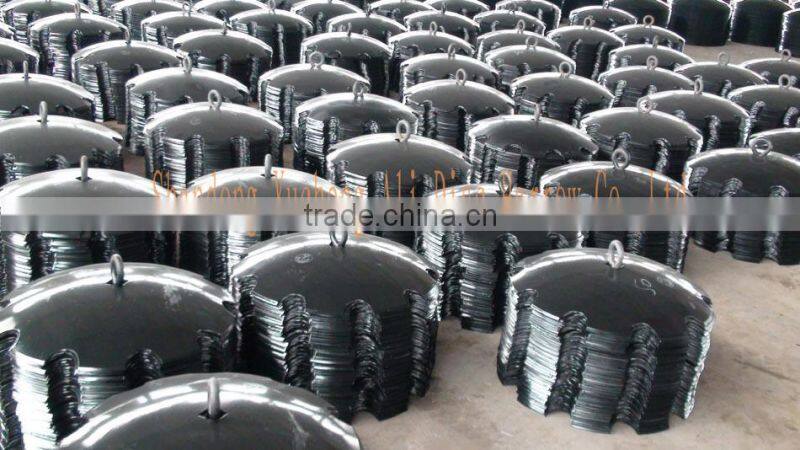

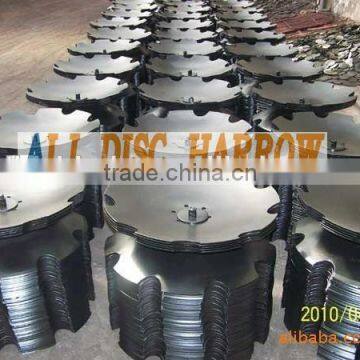

We have a production line for discs producing, cleaning and painting. We can produce discs made of qualified spring steel 65Mn or boron steel from 254 to 960mm in diameter and from 3 to 12mm in thickness. Annually output is 300,000 pcs. The products exported to UK, USA, France, Australia and South Africa, etc. more than 20 countries and district. We also can supply all various discs according to customers’ drawings and samples.
Common Specifications of Disc | |||
Dia. | Concavity | Thickness | |
MM | INCH | MM | MM |
255 | 10 | 12 | 3 |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3,4 |
460 | 18 | 38~60 | 3,4 |
480 | 19 | 57 | 3,4 |
510 | 20 | 44~63 | 3,4,5 |
535 | 21 | 63 | 3,4,5 |
560 | 22 | 60~85 | 4,5,6 |
585 | 23 | 75~90 | 4,5.6 |
610 | 24 | 75~95 | 4,5,6 |
660 | 26 | 86~115 | 5,6,7,8 |
710 | 28 | 100~130 | 5,6,7,8 |
760 | 30 | 120~135 | 6,7,8,10,12 |
810 | 32 | 120~140 | 8,10,12 |
910 | 36 | 120-200 | 8,10,12 |
960 | 38 | 120-200 | 8,10,12 |
ISO 9001-2008
Contact Us
- Shandong Yucheng Ali Disc Harrow Co., Ltd.
- Contact nameBruce Zhao Chat Now
- Phone0086-534-7360111
- AddressHigh-Tech Development Zone
