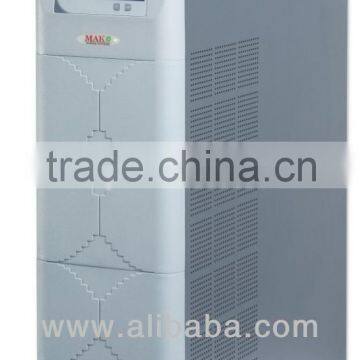

15kVA 12kW Uninterruptible Power Supply UPS

Specifications

UPS from 15kVA 12kW UPS Solution

Internal Battery till 30x9Ah

30 Battery

Made in Europe assembled in Germany

380V or 400V or 415V

TECHNOLOGY
IGBT rectifier
High efficiency (up to 94%)
High input PF ( 0.99)
Low input current THD (<4%)
Low output voltage THD (<2%)
Short response time (<2ms)
High input and output performance
RELIABLE
Parallel option up to 6 units
Intelligent redundancy management (n, n+1 and n+x)
Variable input low voltage depending on loading percentage (up to -36%)
Programmable high overload capacity
Short circuit protection
Local and remote emergency power off
Dual input(Optional)
Optimum generator compatibility
USER-FRIENDLY
Reduced weight/volume/footprint
Higher efficiency with eco-mode (up to 98%)
Self-loading (regenerative mode)
Adjustable input / output voltage & selectable frequency
Extended battery life with intelligent battery management
Automatic and manual battery test with adjustable period and duration
Touch screen TFT LCD user interface (optional for 400-500-600 kVA)
RS232/RS485 (standard)
USB Port (standard)
SNMP (standard)
Advance monitoring optiones (standard)
1024 real time event log and easy download
Multi language options up to 10 languages
512 real time event log and easy download
Multi communication options
Remote monitoring and management software
Programmable dry contacts
Custom inputs
Maintenance bypass
Easy installation and maintenance
10 years spare part warranty
7/24 technical support and customer service
STANDARDS
EN 62040-1 (Safety)
EN 62040-2 (EMC)
CE, ISO 9001:2008, ISO 14001,GOST
