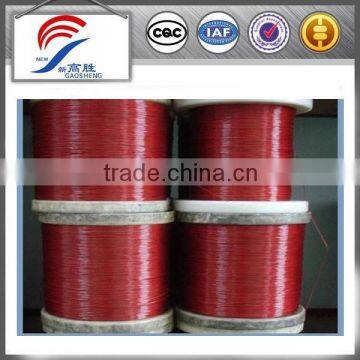

PE coating galvanized steel wire rope supplier
- shanghai
- T/T D/P D/A
You May Like
Product Details
| Steel Grade | PVC,PE,Nylon | Standard | ASTM, DIN, GB | |
| Wire Gauge | 3mm-10mm | Place of Origin | Jiangsu, China | |
| Type | Galvanized | Application | Other, Rope,Tie Out Cable, clothesline | |
| Alloy Or Not | Non-alloy | Special Use | Free Cutting Steel | |
| Model Number | 6X19,7X19 | Brand Name | gaosheng |
Product Description
PE coating galvanized steel wire rope supplier
Product Specifications
1)material: Electric-galvanized, Hot Dipper galvanized, or Stainless Steel
2) Structure: 1X7 ,7X7 ,7X19
3) Nominal diameter: 2mm to 3mm
4) Standard: AISI, GB , ISO, DIN,ASTM
5) Packing Details:
galvanized 7*7 2mm-3mm PE coating steel cable supplier can pack by plastic reel or wooden reel and then packed
by Plywooden pallets
6) Application:
Used for Aviation, steel wire rope for Aeronautical , aircraft cable, general use
steel wire rope
7) Advantages:
Good corrosion resistance,excellent flexibility and softness,high wearylife,etc
Jiangyin Gaosheng Metal Manufacture Co.Ltd is a 10-year-old professional steel wire rope manufacturer.
We offer competitive and good service, can well meet client's various needs and request. We welcome your inquiry at any time!
GAOSHENG Steel Coated Cable Payment & Shipping Terms
Market: | Asia, Southeast Of Asia, South America, Africa, Mid-east,Europe, USA, etc. |
Certification: | ISO, SGS |
OEM: | OEM supply |
| Logo: | Can be printed according to client's request |
Delivery Time: | 15 to 30 days after confirmation of order. |
| Payment: | T/T 30% down payment in advance, balance 70% before delivery . or L/C,Western Union |
Specification Data of PE coating galvanized steel wire rope supplier
GALVANIZED,CLEAR VINYL COATED - 7X7&7X19
Diameter (In) | Coated (In) | Weight per foot (lbs) | Breaking Strength (lbs) | Construction |
| 1/16 | 3/32 | .0093 | 480 | 7X7 |
| 1/16 | 1/8 | .012 | 480 | 7X7 |
| 3/32 | 1/8 | .018 | 920 | 7X7 |
| 3/32 | 3/16 | .026 | 920 | 7X7 |
| 1/8 | 3/16 | .035 | 1,700 | 7X7 |
| 3/32 | 1/8 | .019 | 1,000 | 7X19 |
| 1/8 | 3/16 | .036 | 2,000 | 7X19 |
| 3/16 | 1/4 | .077 | 4,200 | 7X19 |
| 3/16 | 5/16 | .08 | 4,200 | 7X19 |
| 1/4 | 5/16 | .12 | 7,000 | 7X19 |
| 5/16 | 3/8 | .20 | 9,800 | 7X19 |
| 3/8 | 7/16 | .27 | 14,400 | 7X19 |
TYPE 304 STAINLESS STEEL,VINYL COATED -7X19
Diameter (In) | Coated (In) | Weight per foot (lbs) | Breaking Strength (lbs) | Construction |
| 1/8 | 3/16 | .036 | 1,760 | 7X19 |
| 3/16 | 1/4 | .077 | 3,700 | 7X19 |
| 1/4 | 5/16 | .128 | 6,400 | 7X19 |
| 5/16 | 3/8 | .20 | 9,000 | 7X19 |
| 3/8 | 7/16 | .27 | 12,000 | 7X19 |
Production Show of PE coating galvanized steel wire rope supplier
Packing of galvanized 6*7 2mm-3mm PE coating steel wire rope supplier
Loading of galvanized 6*7 2mm-3mm PE coating steel wire rope supplier
Certificate of galvanized 6*7 2mm-3mm PE coating steel wire rope supplier
Production Flow of galvanized 6*7 2mm-3mm PE coating steel wire rope supplier
We welcome your visiting and to be our good customer in the future!
ORDER STEEL WIRE ROPE INFORMATION NEED TO KNOW THE FOLLOWING :
| 1.Application: | For which application the steel wire rope will be used. |
| 2.Size: | Diameter of the steel wire rope in milimeter or inches. |
| 3.Construction: | Number of strands, number of wires per strand and type of strand construction. |
| 4.Type of Core: | Steel Wire Rope have Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC). |
| 5.Lay: | Right regular lay,left regular lay,right lang lay,left lang lay. |
| 6.Fabrication: | Preformed or not. |
| 7.Material: | Bright(ungalvanized),galvanized or stainess steel |
| 8.Grade of wire: | Tensile strength of wires |
| 9.Breaking Load: | Minum or calculated breaking load in tones or pounds. |
| 10.Length: | Length of wire rope. |
| 11.Packing: | In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels. |
| 12.Quantity: | By number of coils or reels,by length or weight |
| 13.Specification: | Any recognized specification, if necessary. |
| 14.Certification: | Mill sheet and/or a third party's inspection,if necessary. |
| 15.Remarks: | Shipping marks and any other special requirment |
