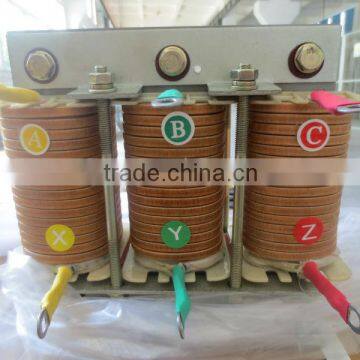

Wave Filtration Reactor

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Type	Other, HARMONIC	Place of Origin	Zhejiang, China
Brand Name	JKCN	Model Number	CKSG
Voltage	400V	Power(W)	5-240
Weight	9KG	Certification	CE
Warranty	1 YEAR	After-sales Service Provided	Overseas third-party support available

Low-vol.reactor can effectively absorb the harmonic waves, improve the voltage wave, and power factor, and protect the capacitor

Main Technical Specifications:

1. It can be used in 400v,660v power system.

2. Reactance rate: 1% 6% 12%

3. Rated insulation level 3kv/min

4. The temperature rise limit in all parts of reactor, core not more than 85k, coil not more than 95k.

5. Working noise level not more than 50dB.

6. The reactor can work for long term under power frequency plus harmonic component not more than 1.35 times rated current.

7. Reactance linear degree: the ratio between reactance under 1.8 time rated current, value under rated current not less than 0.95.

8. The difference between any of two phases' reactance not out of +3%

9. Temperature proof grade: H class (180c) and above
