Home > Products > Air-Conditioner Capacitor > 45+5uf Aluminum Case motor run capacitor especially for air conditioner

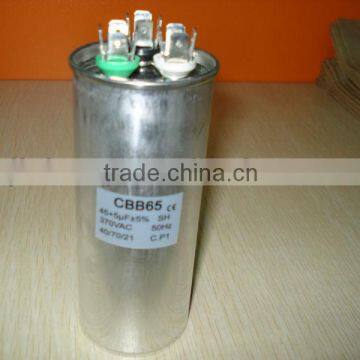

45+5uf Aluminum Case motor run capacitor especially for air conditioner
- NINGBO OR SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JKCN | |
| Model Number | CBB65 | Type | Other, Polypropylene Film Capacitor, Round | |
| Application | Air Conditioner | Package Type | Surface Mount | |
| Capacitance | 5-100uf | Rated Voltage | 250-450vac | |
| Operating Temperature | -40~+70 |
Product Description
Specifications
Aluminium capacitor is explode-proof structure,applicable to 50/60Hz start and operation in air conditioner,refrigerator etc.
Specifications
1.Capacitance stability, long life
2.Explode-proof structure
3.High insulation resistance
4.High quality,good price
Product Character:
This product uses thickened metalized polypropylene film as a dielectric, coiled by high speed winding machine, encapsulated with Aluminum body. It is treated by using refined castor oil as impregnant in the high temperature and vacuum environment to make the capacitor more stable with long working life. Mean while based on the principle of safety and proof-explosion,this kind of capacitor has been used the second generation mechanical explosion proof design to strengthen the reliability.
Technical Data
Climate type | 40/70/21 |
Capacitance tolerance | +/-5% |
Test voltage | T-T: 2Un T: 2s T-C: 2Un+1000V≥2000V T: 10s |
Insulation resistance | ≥3000MΩ |
Loss tangent | tgδ ≤0.002(50/100Hz ) |
Dimensions(mm)
Capacitance (µF) | 250V- 450V |
D×H(mm) | |
2 |
40×70 |
3 | |
4 | |
5 | |
6 | |
7 | |
8 | |
10 | |
12 | |
15 | 45*90 |
20 | 45*90 |
25 |
45*90 |
30 | 45×90 |
35 | 50×110 |
40 | 50×110 |
45 | 50×110 |
50 | 50×110 |
55 | 60×110 |
60 | 60*110 |
70 | 60*110 |
80 | 60×150 |
100 |
We could design and manufacture as customer's specified specs and dimensions. We can products with any
voltage,capacity,outlet line structure and installing requirements.
Application:
This capacitor widely used for air-conditioners ,refrigerators,generators,illuminating lamps etc.
We accept OEM.
