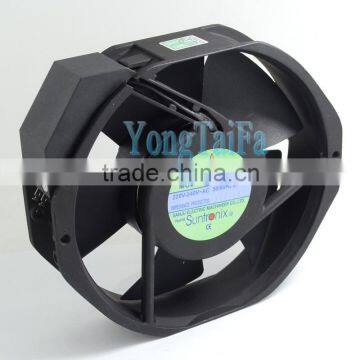

NEW fan SJ1738HA2 fan 1738 capacitor-axial fan 17215038mm

Model: SJ1738HA2 SJ1738HA1 110 v, 220 v


Size: 172 * 150 * 38 mm


Bearing structure: B: BALL (BALL bearings)


Note: this not oily.The parameters of oil bearing and ball bearing is the same, is divided into left upper corner of the label mark for Sleeve, parameters for "S" on the graph, in the cases of SJ1238HA2SAT the meaning of "S" for oil.By can also feel pressure, oil from the back of the press to the motor parts without elasticity, elastic ball.Ball bearing life 60000 hours, oily life 30000 hours.Company fan have a seal or code, anti-counterfeiting mark, please look for the customers quality goods, guard against counterfeiting.


Voltage and current, as shown in the diagram and label


Power: 25/31 w


Speed: 2850/3450 (R/min)


Air: 185/245 (CFM)


(dB noise: 54/57 - A)


Packing: in bulk, no separate packing box, 24 sets of ordinary cardboard packaging / 1 FCL;


Framework: black painting of aluminum alloy die-casting anti-corrosion, moisture proof structure;


Bearing: low noise imported ball bearing;


Using the environment temperature (℃) : - 20 ℃ ~ 70 ℃ B: (ball bearings)


Life: working environment temperature 40 ℃ B: (ball bearings) 60000 (h)


Long service life, can work 24 hours continuously for a long time.
