Product Details
| Place of Origin | Guangdong, China | Brand Name | Marshell | |
| Model Number | PIC-3000 | Output Power | Other, 6000w | |
| Output Type | Single | Size | 410*230*158mm | |
| Weight | 7.3kg | Input Voltage | 12V/24V | |
| Output Voltage | 100~120V/220~240V | Type | DC/AC Inverters | |
| Output Frequency | 50Hz / 60Hz±3Hz | Output Current | modified sine wave |
Product Description

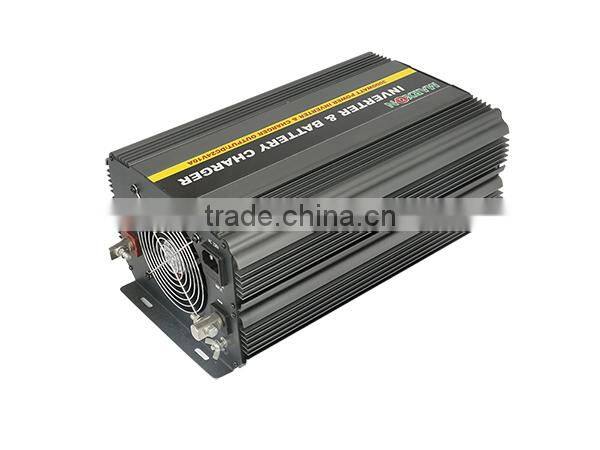

PIC-3000 12V 230V 3kw Power Star Inverter Charger
Marshell power inverter protect function:
1. Overload protection: Automatically shuts down when continuousdraw exceeds rated continuous watt;
2. Over voltage protection: Automatically shut down when input exceeds 16±1VDC;
3. Low voltage Alarm: Audible when battery dischargesto 10.5±0.5VDC;
4. Under voltage protection: Automatically shuts down when input is less than 10.0±0.5VDC;
5. Output voltage range 115V±10% AC (RMS)230V±10% AC (RMS);
6. Output frequency 60±3Hz 50±3Hz;
7. Thermal protection: Automatically shuts down when housing temperature exceeds 70 centigrade.
PIC-3000 12V 230V 3kw Power Star Inverter Charger Specifications
Model | PIC-1500 | PIC-2000 | PIC-3000 | PIC-5000 | PIC-6000 |
Continuous output power (Watt) | 1500 | 2000 | 3000 | 5000 | 6000 |
Output peak power (Watt) | 3000 | 4000 | 6000 | 10000 | 12000 |
Input voltage (DC) | 12V/24V/48V | ||||
Output voltage (AC) | 100~120V / 220~240V | ||||
Output frequency | 50Hz / 60Hz | ||||
Output waveform | Modified sine wave | ||||
Efficiency | 85~90% | ||||
Low battrey-voltage alarm (Volt) | 10V±0.5V/21±1V/42±2V | ||||
Low battrey-voltage shutdown (Volt) | 10V±0.5V/20±1V/40±2V | ||||
Overload protection | Yes | Yes | Yes | Yes | Yes |
Input reverse protection | Yes | Yes | Yes | Yes | Yes |
Short circuit protection | Yes | Yes | Yes | Yes | Yes |
Over temperature shutdown | < 65°C | < 65°C | < 65°C | < 65°C | < 65°C |
Cooling mode | By Fan | ||||
Accessories | Alligator clips (excluded) | ||||
Replaceable fuse | 25A*8 | 25A*12 | 25A*18 | 25A*31 | 25A*34+30A*2 |
Charger input voltage | 12V/24V48V | ||||
Input frequency | 50Hz / 60Hz | ||||
Output voltage: | 12V/24V48V | ||||
Output current: | 10A | 20A | 20A | 50A | 50A |
Battery type | For charging 12V / 24V / 48V lead acid battery only | ||||
Light switching current | 2A | 4A | 4A | 10A | 10A |
Efficiency | 80% | 80% | 80% | 80% | 80% |
Overload protection | Yes | Yes | Yes | Yes | Yes |
Short circuit protection | Yes | Yes | Yes | Yes | Yes |
Reverse polarity protection | Yes | Yes | Yes | Yes | Yes |
Dimension(L*W*H)mm | 310*225*80 | 390*260*93 | 410*230*160 | 605*230*160 | 605*230*160 |
Net weight(KGS) | 3.5 | 5.5 | 7.3 | 12.75 | 12.75 |
Qty(PCS) | 2 | 2 | 1 | 1 | 1 |
Carton measurement(CM) | 51*32.5*34 | 51*32.5*34 | 50.3*31.6*25.8 | 71.5*32.6*25.8 | 71.5*32.6*25.8 |
Container 20FT(PCS) | 978 | 978 | 692 | 440 | 440 |
