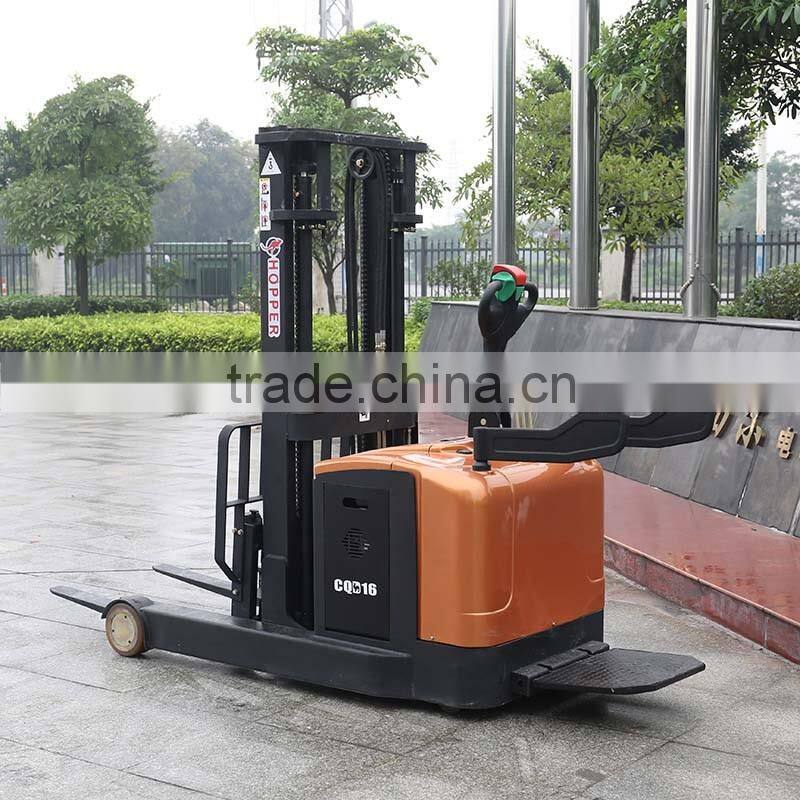

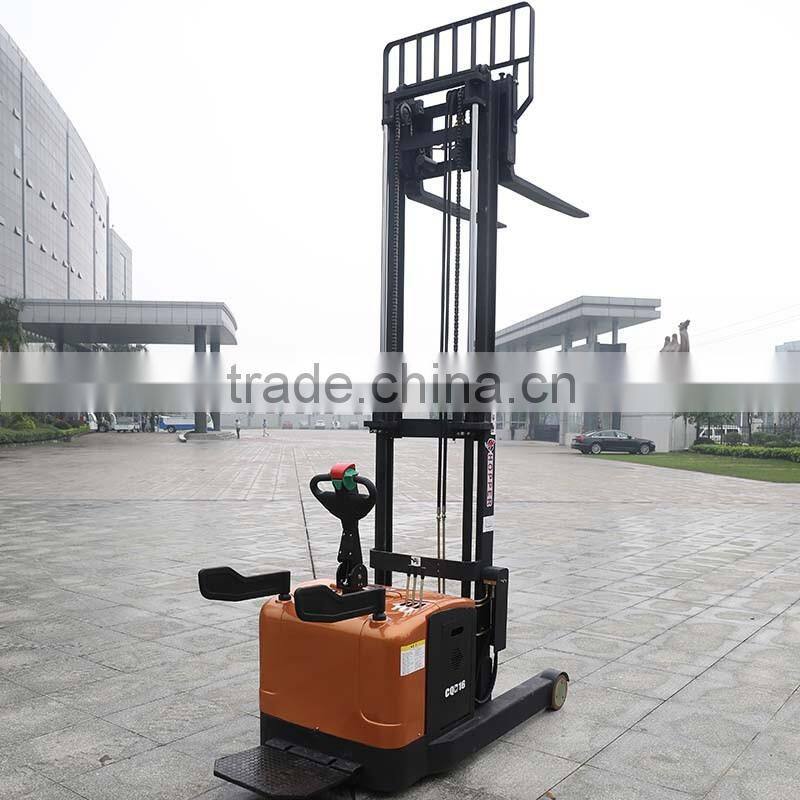

Power Steering Hydraulic Power Electric Reach Stacker (CQD16)

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

You May Like

Product Details

Condition	New		Place of Origin	Shanghai, China
Brand Name	Marshell		Model Number	CQD16
Type	Manual Pallet Truck		Power Souce	AC Motor
Rated Loading Capacity	1600KG		Max. Lifting Height	3000mm
Min. Lifting Height	80mm		Fork Length	2320MM
Fork Width	1035MM		Overall Dimensions	100/40/1070MM
Certification	CE		After-sales Service Provided	Overseas third-party support available

Product Description

Power Steering Hydraulic Power Electric Reach Stacker (CQD16)

Main configuration

1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs

suitable mode

1. Vertical driving wheel, driving efficiency, easy installation & maintenance.

2. Compact struture and low gravity.

3. Tilting system forks easy for loading and stacking.

TIPS

Does not apply to contain flammable and explosive gas or dust

Power Steering Hydraulic Power Electric Reach Stacker (CQD16)

Model	CQD10	CQD16	CQD20
Loading capacity	1000KG	1600KG	2000KG
Loading center distance	500MM	500MM	500MM
Wheelbase	1100MM	1400MM	1500MM
Servise weight (with battery)	1500KG	1600KG	2500KG
Tyre size, drving wheel	230/75MM	230/75MM	230/75MM
Tyre size, loading wheel	180/55MM	210/85MM	210/85MM
Tyre size, balance wheel	130/55MM	130/55MM	130/55MM
Driving wheel+Loading wheel/Balance wheel	1+2/2	1+2/2	1+2/2
Front overhang	100mm	130mm	130mm
Lift height	2500/3000mm	3500/4000mm	4500/5000mm
Height of triller in drive position min./max.	1100/1400mm	1100/1400mm	1100/1400mm
Height, mast lowered	1725/1925mm	2225/2475mm	2015/2240mm
Overall lengh	2250MM	2320MM	2420MM
Overall width	1000MM	1035MM	1035MM
Turn radius	1350MM	1640MM	1760MM
Fork dimensions	100/35/1070MM	100/40/1070MM	100/40/1070MM
Fork carriage width	200-725mm	200-725mm	200-725mm
Aisle width for pallets 1000*1200 crossways	2500mm	2800mm	2900m
Aisle width for pallet 800*1200 crossways	2650MM	2950MM	3050MM
Reach distance	350mm	470mm	470mm
Travel speed(laden/unladen)	4/5KM/H	4/5KM/H	4/5KM/H
Lift speed(laden/unladen)	30/50MM/S	25/45MM/S	18/40MM/S
Max. gradeability(laden/unladen)	5/8%	5/8%	5/8%
Driving motor	1.5KW	1.5KW	1.5KW
Lift Motor	2.2KW	3KW	3KW
Battery volts./Cap.	24V 240AH	24V 240AH	24V 240AH
Container qty (20FT/40FT/40HQ)	4/8/8PCS	4/8/8PCS	4/8/8PCS
