Automatic PVC/PET Cylinder Tube Production Line
- Shenzhen sea port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Product Type | Fast Food Box | |
| Place of Origin | Guangdong, China | Brand Name | Hipower | |
| Model Number | HY-2030 | Voltage | 380V 50/60HZ | |
| Power(W) | 4500W | Dimension(L*W*H) | L2050*W1300*H2250mm | |
| Weight | 600KG | Certification | CE | |
| Warranty | offer one year warranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Cylinder Tube Curling Machine
Main Features:
1, Eyelet hole auto-punching function available on request.
2, PLC operation system adopted,fast and precise cylinder forming performance;
3, Automatic material feeding and rolling, enables high efficiency;
4,Diameter and Length of cylinders are adjustable;
5, Both Gluing and Ultrasonic bonding devices are installed and optional;
6, Photoelectric tracking cutting and forming, so precision forming and non-scratch effect are available,
7,Synchronous punching device for making punch holes on both sides of cylinder are installed.
8,Co-operated with HY-2030, we can realize the automatic production line purpose.
Application of HIPOWER Full Automatic Cylinder Edge Curling Machine
Mainly applied for automatic cylinder edge curling for materials like PVC, APET, PETG, PP and other plastic; also known as plastic cylinder automatic curling machine, plastic cylinder automatic crimping machines, automatic paper cylinder curling machine, paper materials cylinder automatic crimping machines, automatic paper tube or cylinder curling machine, plastic cylinder crimping machines.
Features of of HIPOWER Full Automatic Cylinder Edge Curling Machine
PLC man-machine interface operating system, servo motor drives; fast and accurate cylinder edge curling effect; cylinder body automatic feeding and automatic crimping; designed to meet cylinders of various measurement; Auto cylinder diameter and length adjustment available/ HIPOWER Full Automatic Cylinder forming and Edge Curling Machine with robot arm and have good performance that cylinder edge curled with exact even diameter and length;
Technique Specification
Model | HY-2030 |
Material | PVC, PET, PP, PETG ,APET |
Power | 4500W |
Dia. | 50-200mm |
Length | 100-300mm |
Film thickness | 0.3mm-0.5mm |
Productivity | 6-10times/min |
Dimension | 5500*5500*1600mm |
Air pressure | 0.5-0.7 MPa |
Power supply | 3P 5wires 380V/220V 50/60Hz |

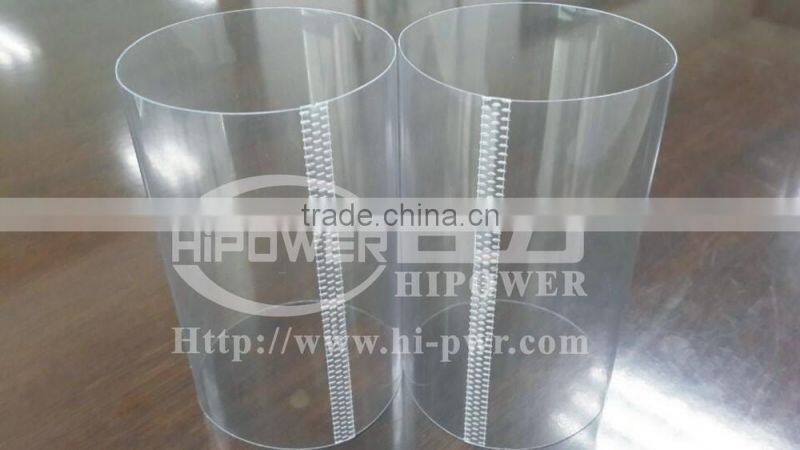

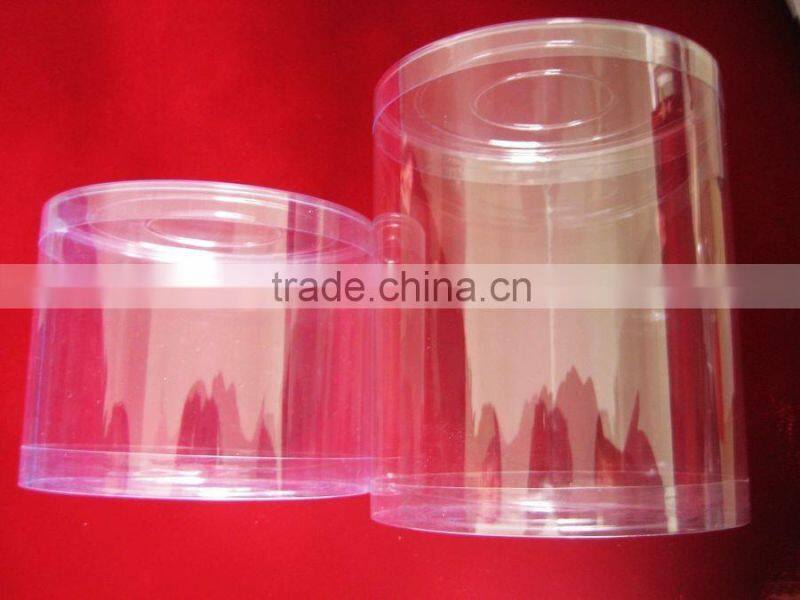

Welded sample view:

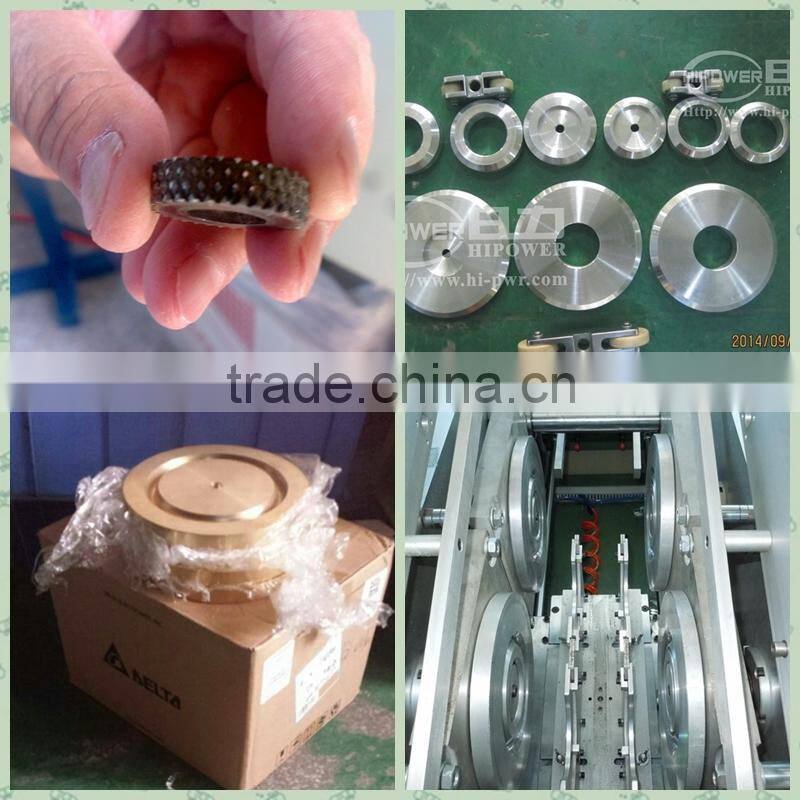

Mould view:

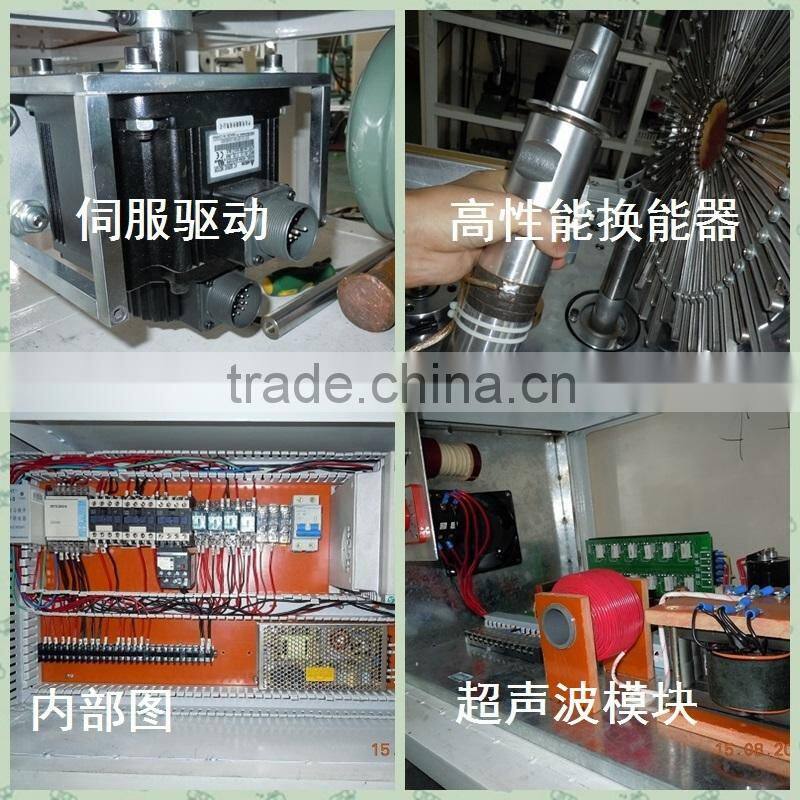

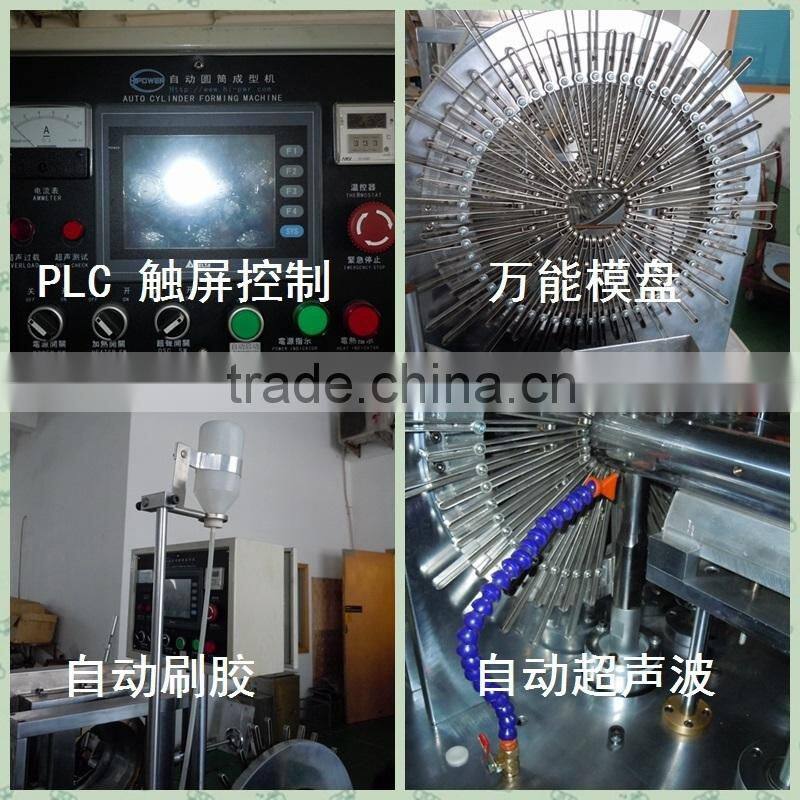

Details of the machine

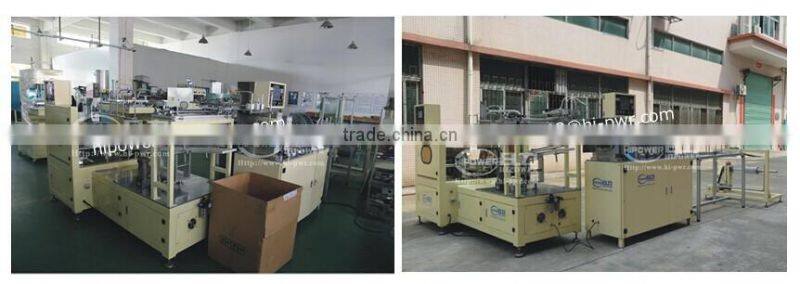

On the site:
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support, customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do and Why Us:
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic welding technology,automation of production processes and other innovative industrial solutions.
Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, Big Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
All machines are completely safe for the operator and fully comply with CE regulations.
Questions 01. How Do You Pack the machines
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
