PET based Soft Creasing Foldable Box making machine

high frequency plastic PET/PVC/GAG folding box making machine

Mainly application:

It is especially designed for Clear Packaging Boxes, soft crease box forming,

PVC & PET folding box, Transparent Foldable plastic box making. The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films. Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.

For Producing Products:

We developed this high frequency machine for the PVC &PET soft crease boxes, also known as PVC folding box /Offset Printing Folding Boxes/PVC&PET foldable box ,etc.

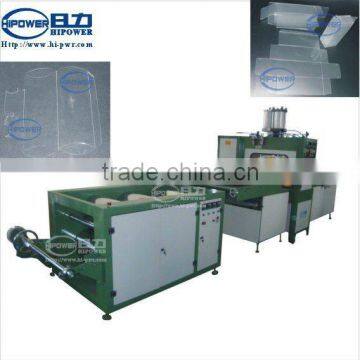

This is an automatic high frequency soft line creasing machine with flattening system ;

It works with the transparent roll of PVC or PET , go through the flattening system first , before material creased by High Frequency Machine .

This machine makes the perfect creased line on the flat PVC & PET sheet according to the shape

of the box which makes the box easy to fold , fast to pack and elegant in appearance .with

perfect and clean cutting finish ,it easily goes with next production step : the side gluing machine .

1. PVC Box                     2. PET Box                            3. PET-G Box

4. A-PET Box                  5. GAG box                            6. Other 30%PVC based Plastic packing box

Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products clearly without opening the package. On the other hand, the see-through packaging method attract attention of customers, young or old.

Machine General Features:

1. Length, width and radian of welding area can be adjusted by change welding die.

2. European-model square high frequency vibration box, more reliable and stable in output

3. Automated Three-in-one machine : auto film flattening----(Optional: auto offset printing)---auto soft crease forming & waste scrap cutting

4. PLC & HMI Touch screen operated, making the operating process simple and time-saving

5. Servo-motor automated, enables exact off-set printing effect, box & scrap cutting performance

6. Separated Continuous Oil heating flatten system, PET, PETG, GAG.. Plastic flatten is available

7. High frequency welding press Sole hydraulic operated (two phase pressing: The first phase for soft crease forming, The second phase for waste scrap cutting)

8. High sensitive 5557 anti-flash system to protect the welding Mould

9. Human oriented mechanical frame design

10. Mould heating function available, enables beautiful soft crease forming. 11.Customized work table dimensions, electrode holder dimensions, tooling

12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.

13. Customer's site installation, training & maintenance available

14. CE rated machine; factory verified by SGS and BV;

Optional Features on Request:

1.Off-set printing Unit available                                2. HF Filter unit available

3. Auto-high frequency tuning technology                4. High frequency generator on separate cabinet

Technical Specification:

Soft Cease Forming and Cut Mould:

 Parts Inside Machine:

We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performance in long time shipping by sea or by air.

We can provide non-solid wood packing decleartion, our packing no need fumigation.

2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs

3. 12 months warranty for machine, life-long tech. support

4. Recommend equipment of top choice based on your requirements for product;

7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.

Questions 01. How Do You Pack the machines

RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)

Questions 02. Is it difficult to install the machine ?

RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;

you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get install videos, and install instructions from us.

It will be an ABC thing to install machines at your side.

Questions 03. How Does Customer Use the machines

RE: We will provide you operation manual and diagram of machine in English.

For automatic machine and custom machine, we will provide operation videos to you.

Questions 04. Does the machine need compressed air ?

RE: Generally speaking, if your factory with compressed air source, then connect to machine.

If not, please buy a 2Psi -5 Psi air compressor.

If customer request to use Hydraulic pressure, please inform us when put an order.

Questions 05. Does the machine power voltage meet buyers' factory power source?

RE: We can make machine with voltage like:

frequency: 50 - 60HZ Phases: single phase / 3 phases

Voltage: 110V / 220V / 380V/ 415V/ 440V / On request

Please kindly inform us what frequency/phases/voltage you want, when you put order to us.

Questions 06. Could you make die / mould for me, if I buy machine from you?

RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.

Questions 07. Can I visit you factory to check machines on-site ?

RE: We are manufacturer, and we welcome customers to visit our factory.

We located in Shenzhen, China; you may come to us by following:

a) Via. Hongkong to Shenzhen :

please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu

b) Via. Guangzhou to Shezhen;

you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.

we will arrange to pick you up from station.

c) Via. Shenzhen Airport :

Please inform us your flight number and contact information before you come, we will meet you at airport.

Questions 08. What Should I bring when I visit your factory?

RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.

For common product, it is enough to show us product pictures or drawings.
