Clutch Bearing NSK Ball Bearing NSS12

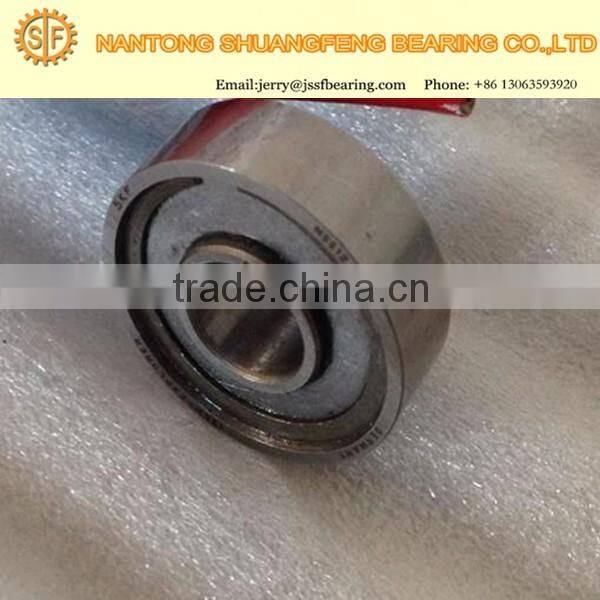

NSK Clutch Bearing product show :

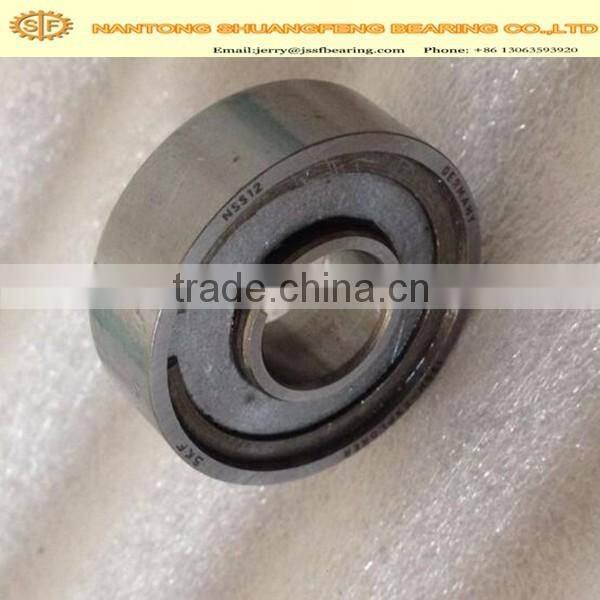

Detailed ball bearing show:

We can supply of clutch  Bearing:

Feature of NSS bearings:

Type NSS is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be
strong enough
To not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.

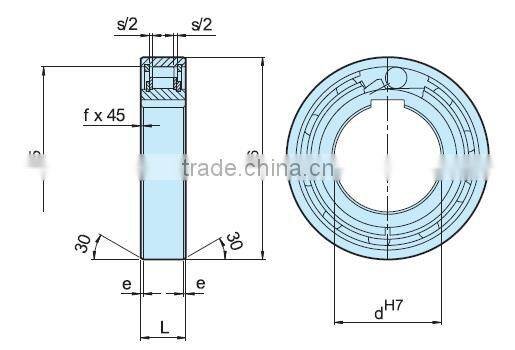

Structure of Clutch bearing:

Application of NSS bearings:

NSS Bearing widely used in Hydroelectric power, vertical motors, marine propeller shafts, rolling mill rolling screw with a reducer, tower cranes, coal grinding machines, extruders, molding machines hydroelectric generators, vertical motors, marine propeller shafts, rolling mill rolls Built-screw with a reducer, tower cranes, coal grinding machines, extruders, molding machines .

Advanced bearing produce machine :

Bearing Testing :

Workshop Show:

Exhibition Show

Delivery:

1).If quantity is small one ,we will send you by UPS,DHL,FEDEX,OR EMS. Tracking number will be advised after delivery,

2).If order is big,we will advise you use Air Freight or Sea Freight

3).The balance payment should be paid before delivery to you.

Packing :

1). If no special request,we will use normal packing, 1 bag for each product

2).If need special packing or carding, please list them in your E-mail.We would

like to make the customer wanted packing

3).we will use tray to protect products ,in order to avoid any damage in the delivery

4). OEM service is available

Part of Our Warehouse:

Payment Term :

Why Choose Us:

1) Reply you inquiry in 24 working hours

2) Experienced staffs answer all your questions in fluent English

3) Customized design is available. OEM&ODM are welcomed.

4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5) Special discount and protection of sales area provided to our distributor and big regular customers.
