HC-5060 Hot Plate Welding Machine

The introduction of hot plate welding machine
Hot plate machine, also known as hot plate welding machine, hot plate plastic welding machines, plastic welding machine hot plate, hot plate plastic welding machine, hot plate welding machine, hot plate welding machine, plastic welding machine hot plate, hot plate welding of plastic Machine. Welding products mainly for the main area, non-standard plastic products, such as: car glove box welding, welding car bumpers, car dashboards welding, auto water tank welding, automobile taillights hot plate welding, hot plate welding, battery.

.........................................................................................................................................................................................
The principle of hot plate welding machine
Electrical energy into heat through plastic welding of thermoplastics. Such as: ABS welding, PMMA welding, PC-ABS welding, POM welding, PA6 / 6 welding, PE welding, PPO welding, PP welding. Thermoplastic material heated by the heating elements, the molecular to the molten state, a short time the two plastic pieces pressed together under a certain pressure, with each other through the molecular motion become one, and after a certain time after cooling, the fusion of two plastic parts will be as one, And reach a certain weld strength, so that to achieve the fusion welding capabilities.

.........................................................................................................................................................................................
The character of hot plate welding machine
Hot plate machine can be divided into divided into horizontal and vertical hot plate hot plate machine, plastic welding surface that allows margin compensation, weld strength is assured, hot plate welding machine in response to the needs of various materials, adjustable hot plate machine welding procedures, the use of servo motor drives, intelligent man-machine interface operating system. Hot plate welding mold is divided into horizontal and vertical movement of pieces of equipment size because of the size of the welding, hot plate according to the size of machine equipment, drive optional pneumatic, hydraulic drives or servo motor drive. Hot plate welding machine according to program requirements, you can choose semi-automatic or fully automatic mode. Hot plate welding machine equipment, stable and can ensure consistent welding results. Temperature of hot plate welding machine, hot plate machine heating time, cooling time for hot plate, hot plate heating unit depth, the depth of the pressure welding machine hot plate, hot plate machine parameters can be adjusted transit time

.........................................................................................................................................................................................

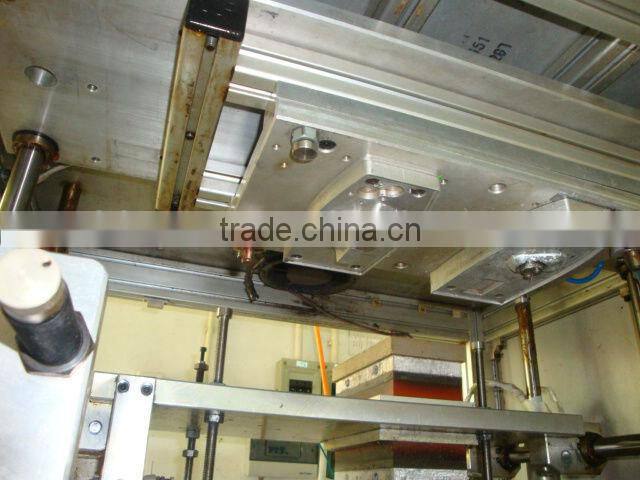

Hot plate machine whole structure characteristics: the national standard of quality rectangular steel pipe welded together, the surface and then by spray Process. CNC bending machine door and punch by the molding process, the surface and then by spray Process. Hot plate moving mechanism by the cylinder, slide rail, hot plate and other components. Cylinders as a power source to drive the hot plate body along the two slide rails in a straight line before and after. Hot plate welding machine parts: from the hot plate model, heating plates, hot plate heating plate through the mold and quickly locate fastening body moving mechanism connected with the hot plate. Hot plate machine structure is characterized by: hot plate in the movement, smooth and sports a small gap. Institutions on the hot plate with heating plate and the upper and lower thermal mode, and the heating plate thermal model of the fast connection of fixed institutions that can effectively and quickly switch to a different product, to optimize its use of improved production efficiency. Hot plate machine, the limit under the template guides through four hot plate welding machine and joined together, can precisely adjust the welding depth, together form a device of the main moving parts.
Hot plate machine plate bodies: from the cylinder, linear bearings, 4 column ¦Õ30 guide, hot plate machine tooling, pneumatic clamping device, vacuum suction cups and other components. Cylinders as a power source, driving along the four hot-plate guide rod body mainly as a straight line. Vacuum system imported vacuum generator output vacuum pressure, by vacuum suction to suck the plastic pieces firmly to ensure correct positioning of plastic parts, plastic parts without damaging the surface

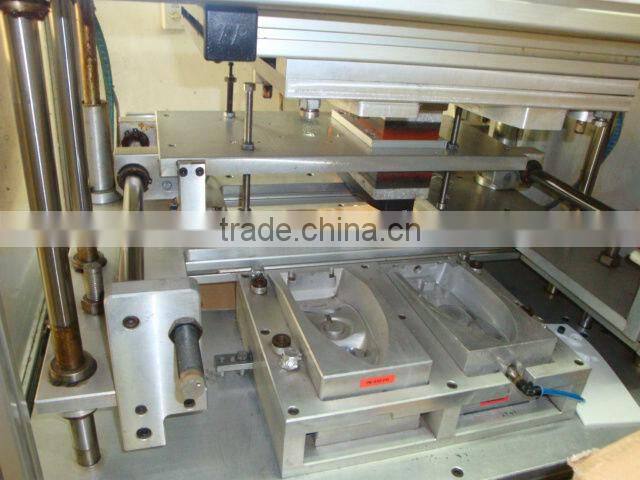

Hot plate machine structure is characterized by lower die: to ensure the hot plate machine, hot plate under the workpiece and the machine, the product between the thermal bonding mode. In the hot plate in the production process of plastic welding machine, enabling quick access to items on the hot plastic mold, but also quickly and accurately under the welding together plastic pieces. Coupled with additional buffer, accurate positioning, vibration reduced the size and appearance to ensure product requirements

.........................................................................................................................................................................................
Hot plate welding machine is fully enclosed, hot plate machine is equipped with powerful ventilation at the top of the structure, the hot plate welding machine produced by the rapid discharge of toxic gas hot plate machine inside the machine chamber to reduce the toxic gases to the operating crew hot plate injury, the back of the hot plate machine body, the lower door are movable for easy maintenance. To ensure safety in production, reflecting the human design, in the mouth with safety grating operating in the state of automatic welding machine hot plate to ensure that any part of the body in the hot plate machine within the danger zone, the hot-plate machines stop and wait dangerous to continue working to lift before. Hot plate plastic machine parts can be applied to different size, no size limit, the surface can be applied to any welding, no special requirements

The application of hot plate welding machine
hot plate Lights welding, cars tank hot plate welding, , the hydrant hot plate welding, car doorhot plate welding , dashboard hot plate welding, hot plate welding in the control, duct hot plate welding, hot plate welding of plastic water tanks, oil  thermos of hot plate welding, hot plate welding fixtures, container hot plate welding, , the hydrant hot plate welding, hot plate welding battery, steam iron hot plate welding, hot plate welding automotive plastic fuel tanks, car tail light hot plate welding, hot plate welding instrument panels, intake manifold hot plate welding, plastic card board hot plate welding, hot plate welding of carbon cans, brake fluid tank hot plate welding, hot plate welding bumper, instrument panel, hot plate welding, gas net thermal plate welding, motorcycles bitumen thermal plate welding, washing plastic balance ring hot plate welding, hot plate welding the drum, tank dishwasher hot plate welding, large irregular plastic products; PP, PC, nylon, glass fiber engineering plastics welding.
The parameter of hot plate welding machine

Technical Data:

Model:      HC-5060

The size of press board:500*600mm

Drive mode:air pressure,hydraulic,press or servo

imput voltage:380V,3 phase,5 wire

imput air pressure:0.6-1.0Mpa

Heating power:10-70KW

Heating temperature:TC-500°C
