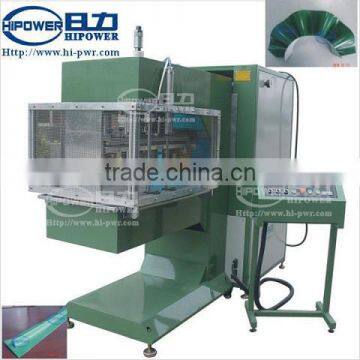

High Frequency PVC Plastic Welding Machine for Treadmill And Conveyor Belt

Mainly application:

It is specially designed HF welders for products series of Conveyor Belt. The Conveyor Belts made of plastic material like Thermoplastic Elastomers (TPE), PVC, PU, EVA., and etc... Shenzhen Hipower Ltd has developed new generation high efficiency HF Generator (auto HF tuning system available), which is capable of stable HF power distribution onto 1500mm (60") long cleat electrode with height up to 150mm (6") in one weld/press cycle. Shenzhen Hipower Ltd provide HF welders which also weld complex chevron step shapes, sidewalls with our customized quick mount electrodes, mesh edge and PU materials. The shapes of finished products like T cleats, L cleats, profiles, conveyor belts, side-walls,... The HF welders are designed for easy operation, simple product feeding and taken out.

For Producing Products:

1. Sidewalls, Treadmill,

2. T-Cleats, L-Cleats and other Cleats

3. TPE, PU, PVC conveyor belts

Machine General Features:

1. Length, width and radian of welding area can be adjusted by change welding die. 2. European-model square high frequency vibration box, more reliable and stable in output 3. Single line or two lines continue welding, welding length can be ordered as special need. 4. Can be used as a freestanding machine for welding production or as a supplement to a larger system. 5. CE rated machine; factory verified by SGS and BV; 6. Customer's site installation, training & maintenance available 7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric 8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video. 9.Customized work table dimensions, electrode holder dimensions, tooling 10. High frequency welding press pneumatically operated 12. Machine structure is designed for long belt feeding, welding, and picking up to increase working speed

Optional Features on Request:

1. Auto-high frequency tuning technology 2. HF Filter unit available 3. Servo-motor; Touch screen programmable HMI / PLC 4. High frequency generator on separate cabinet 5. Large space behind the welding tool 6. Precision straight bar welding up to 1500x50mm

Technical Specification:

Work-Table Size can be customized.

Welded Samples:

Welded Samples:

Machine Unit Views:

Where Are our Customers:

Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....

1. Customer's site installation, training & maintenance available

4. Recommend equipment of top choice based on your requirements for product;

5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;

6. Providing assistance in manufacturing and modifying tools;

Questions 01. How Do You Pack the machines

RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting standard, and no need addtional fumugation)

Questions 02. Is it difficult to install the machine ?

RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a complete machine;

you just need to connect power and compressed air to machine, then begin to operate the machine.

For large size machines, we will take the machine apart, on condition that we do our best to keep the machine easy to assembly.

You will get install videos, and install instructions from us.

It will be an ABC thing to install machines at your side.

Questions 03. How Does Customer Use the machines

RE: We will provide you operation manual and diagram of machine in English.

For automatic machine and custom machine, we will provide operation videos to you.

Questions 04. Does the machine need compressed air ?

RE: Generally speaking, if your factory with compressed air source, then connect to machine.

If not, please buy a 2Psi -5 Psi air compressor.

If customer request to use Hydraulic pressure, please inform us when put an order.

Questions 05. Does the machine power voltage meet buyers' factory power source?

RE: We can make machine with voltage like:

frequency: 50 - 60HZ Phases: single phase / 3 phase

Voltage: 110V / 220V / 380V/ 415V/ 440V / On request

Please kindly inform us what frequency/phases/voltage you want, when you put order to us.

Questions 06. Could you make die / mould for me, if I buy machine from you

RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.

Questions 07. Can I visit you factory to check machines on-site ?

RE: We are manufacturer, and we welcome customers to visit our factory.

We located in Shenzhen, China; you may come to us by following:

a) Via. Hongkong to Shenzhen :

please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point like Shekou, Lohu

b) Via. Guangzhou to Shezhen;

you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.

we will arrange to pick you up from station.

c) Via. Shenzhen Airport :

Please inform us your flight number and contact information before you come, we will meet you at airport.

Questions 08. What Should I bring when I visit your factory?

RE: For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.

For common product, it is enough to show us product pictures or drawings.
