Adjustable Construction Steel Prop
- Ningbo or Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LUOWEN | |
| Model Number | LW-SP | Type | Scaffolding Parts | |
| Scaffolding Part Type | Scaffolding Props |
Product Description
Description:
1,Raw Material:
Q235 Steel.
2,Application:

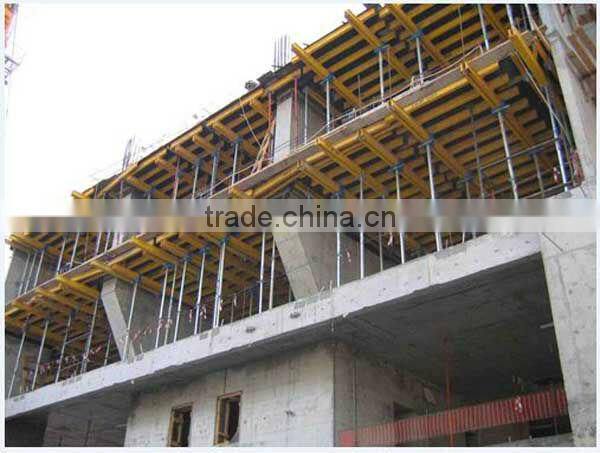

Steel Prop is applied to vertically support system in the construction to support the formwork, such as the floor construction.
3,Structure:

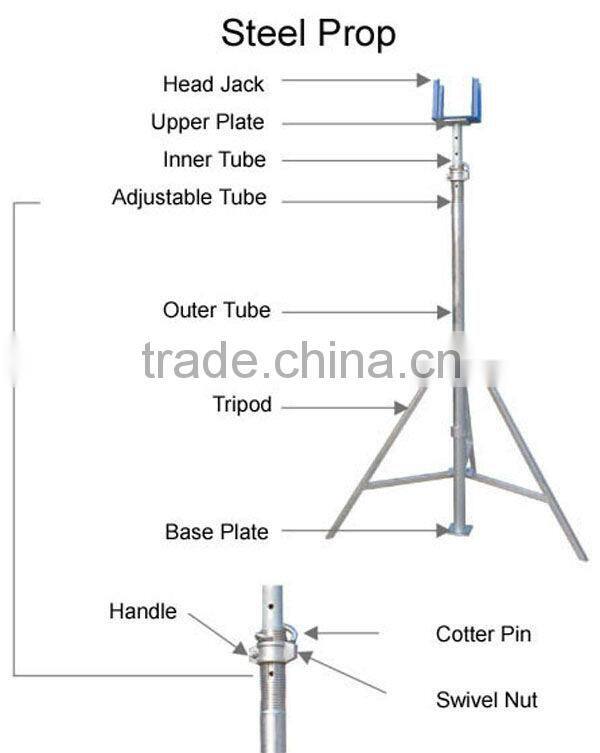

Steel Prop is mainly made up of bottom plate,outer tube, inner tube, swivel nut, cotter pin, upper plate and the accessories of folding tripod,head jack, the structure is simple and flexible.
4,Convenient:
Steel Prop is simple of the structure, so it is easy to assemble and disassemble.
5,Adjustment:
Steel Prop is adjustable because of the outer tube and inner tube, the inner tube could extend and shrink in the outer tube, and then it could be adjusted according to the required height.
6,Economy:
Steel Prop could be re-used, and once useless, the material could also be recovered.
7,Practical using:
Steel Prop could be adjusted to required height according to the different height of the constructions.
Technical Information:
No. | Item | Size (mm) | Adjustable Range (mm) | |
Inner Tube | Outer Tube | |||
1 | LW-250(75/60) | φ60 x 3.5 | φ75 x 3.0 | 1400~2500 |
2 | LW-300(75/60) | φ60 x 3.5 | φ75 x 3.0 | 1650~3000 |
3 | LW-350(75/60) | φ60 x 3.5 | φ75 x 3.0 | 1900~3500 |
4 | LW-400(75/60) | φ60 x 3.5 | φ75 x 3.0 | 2150~4000 |
5 | LW-550(75/60) | φ60 x 3.5 | φ75 x 4.0 | 2900~5500 |
6 | LW-250(60/48) | φ48 x 3.5 | φ60 x 3.0 | 1400~2500 |
7 | LW-300(60/48) | φ48 x 3.5 | φ60 x 3.0 | 1650~3000 |
8 | LW-350(60/48) | φ48 x 3.5 | φ60 x 3.0 | 1900~3500 |
9 | LW-400(60/48) | φ48 x 3.5 | φ60 x 3.0 | 2150~4000 |
10 | LW-550(60/48) | φ48 x 3.5 | φ60 x 3.0 | 2900~5500
|
....
