high frequency carpet welder

FOB Price

USD $2,500 - $10,880 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Hipower
Model Number	HR-15KW	Voltage	220V/380V/400V or customize
Power	15000w	Frequency	27.12MHz
Welding Area	600*700mm	Dimensions	269011401800mm
Weight	1000kg	Usage	plastic,carpet,life jacket welding
After-sales Service Provided	Engineers available to service machinery overseas

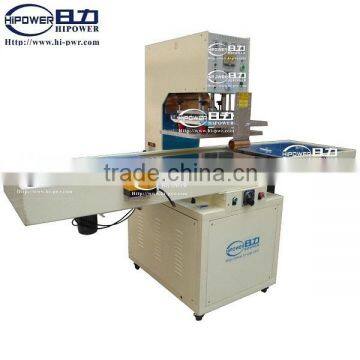

Model: HR-15KWT high frequency carpet welder

Character

Appplied to process or weld large-area productions,such as PVC water bed,drifting raft,children swimming pool.

Two-way automatic slipway , back-forth model continuous automatic feeding,accurate-orienntation.

Optional operation mode: hydraulic or pneumatic.

European-model squarness high prequency vobration box,more realible and stable in output.

Adopting high sensitive anti-sparkle device,avoid damaging the mould.

Technique specifications

Model	HR-15KWT	HR-25KWT	HR-35KWT	HR-50KWT
Power	15000W	25000W	35000W	50000W
Voltage	380V 50/60HZ
Frequecny	13.56MHZ
Input power	25KVA	35KVA	50KVA	70KVA
Rectifier	SILICON DIODE
Oscillation tube	8T25RB	8T25RA	8T87RB	9T64A
Max pressure	1000kg	1000kg	1500kg	2000kg
The gap between electrodes	100MM
The moving distance of active horn	100MM
The size of upper electrode	300*400	350*500	600*800	700*800
The size of lowwer electrode	350*450	400*600	600*800	700*800
Welding time	0~10S Adjustable

samples:

Unique Features:

1. CE rated machine; easy opeartion, training and maintainace
2. Customer's site installation, training & maintainance available
						3. Grounding Press Platen behind welding electrode, to prevent hurting workers during welding process
4. Copper Made Transformer; NL-5557 anti-spark system; European style HF generator design;
5. Optional design on request: Servo-motor; PLC control, Human-machine-interace system

Machine Unit Views:

Packaged Views:

CE certificates:
