HOT SALES 1080p hd Zoom Camera Module for Hd-sdi Cmos Camera Ptz Cameras

FOB Price

US$ 950 - 1,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Audio Conference System, Network Conference System, Video Conference System	Function	Voting
Simultaneous Interpretation	Yes	Place of Origin	Guangdong, China
Brand Name	KATO/OEM	Model Number	KT-HD60C

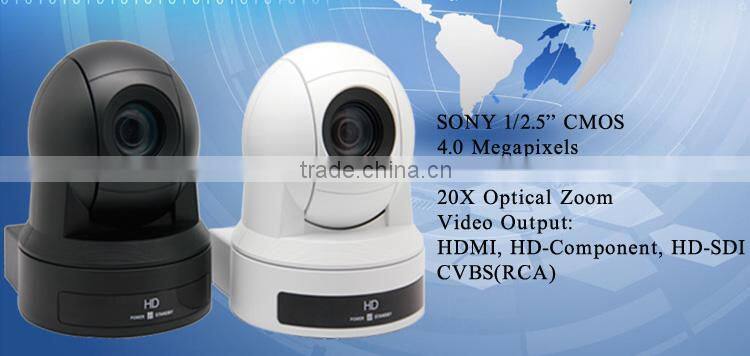

HOT SALES 1080p hd zoom camera module for hd-sdi cmos camera ptz cameras

Parameter:

Item No.	KT-HD60C
Image Sensor	SONY 1/2.5’’Exmor CMOS
Effective Pixels	4.00 Megapixels
Resolution HD	1080p60/50,1080i60/50,1080p30/25,720p60/50
Signal System	PAL/NTSC
Lens	20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end)
Horizontal View Angle	59.5°(W)~3.3°(T)
Focus System	Auto/Manual
Minimum Illumination	0.4Lux
Exposure Control	Auto/Manual/Priority AE/Exposure Compensation/ Bright
Shutter Speed	1/1~1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Preset Position	9 preset positions by IR remote controller, 255 preset positions by Keyboard
Video Output HD	DVI(HDMI, HD-Component), 3G/HD-SDI
Video Output SD	CVBS(RCA)
Control Protocol	SONY VISCA, PELCO P/D
Control Mode	RS-232C, RS-422/485
Power	12V DC(10.8~13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-20-60℃

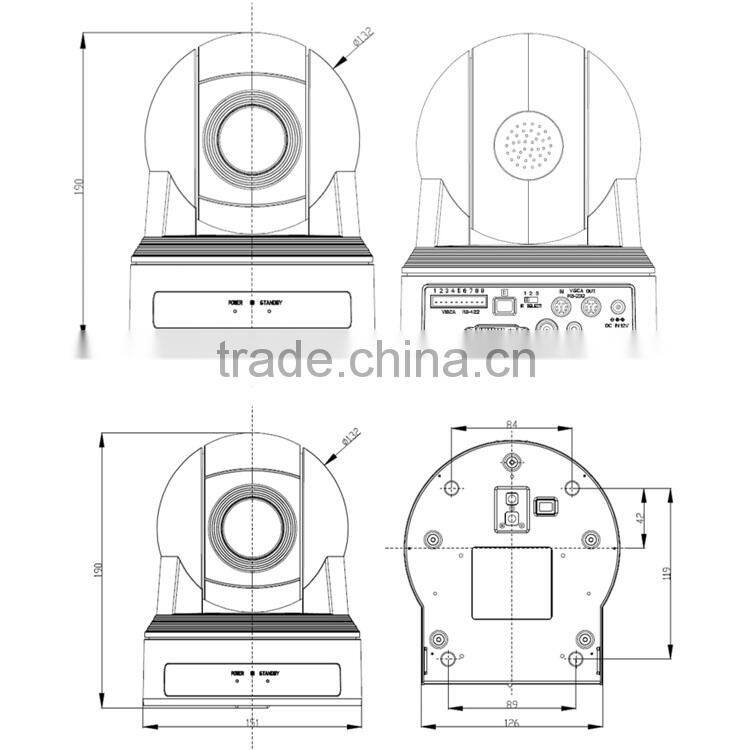

Dimensions	(L)170×(W)151×(H)190mm
Weight	1310
Color	Black/White
Accessories	DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, DVI adapter, YPbPr/HDMI cable, Ceiling bracket
