Video Conference Camera KT-HD30U

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

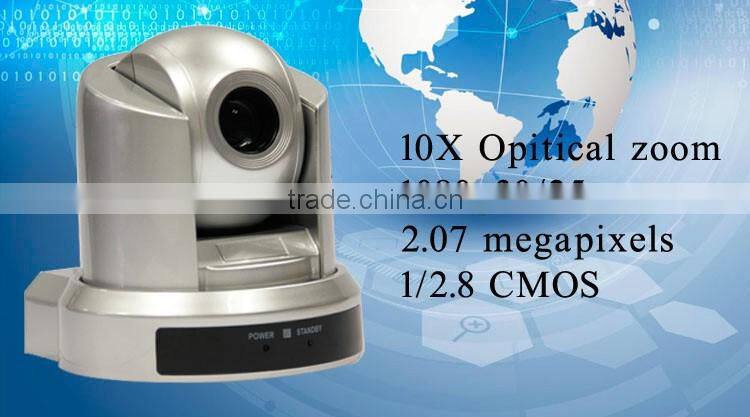

video conference camera KT-HD30U

Newest HD PTZ Video Conference Camera System KT-HD30DU

1/4 Super HADⅡ CMOS 1.3 Megapixels HD PTZ Video Conference Camera

Specification

Item No.	KT-HD30DU
Image Sensor	1/3’’ CMOS
Effective Pixels	2.07 Megapixels
Resolution HD	1080p20/15, 720p30/25
Signal System	PAL/NTSC
Lens	10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end)
Horizontal View Angle	50.6°(W)~5.5°(T)
Focus System	Auto/Manual
Minimum Illumination	0.1Lux
Shutter Speed	1/30~1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Preset Position	9 preset positions by IR Remote, 255 preset positions by Keyboard

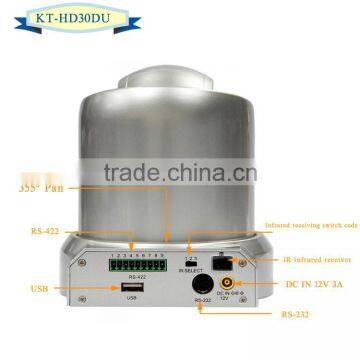

Video Output HD	USB2.0
Video Output SD	No
Control Protocol	SONY VISCA, PELCO P/D
Control Mode	RS-232C, RS-422/485
Power	12V DC(10.8~13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-10-60℃
Dimensions	(L)135×(W)130×(H)144mm
Weight	768g
Color	Silver White

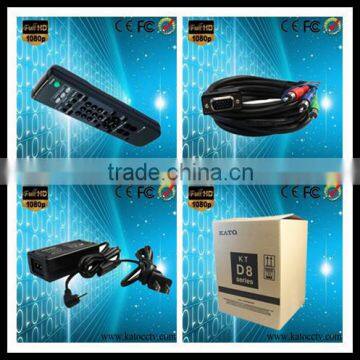

Accessories	DC 12V power adapter, IR Remote, Operation manual, USB2.0, Ceiling bracket
