Home > Products > Serial Device Server > 2 Channels RS232 RS485 Wireless LAN Serial Device Server

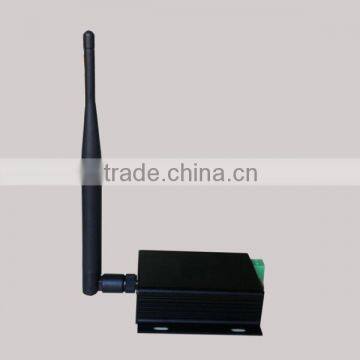

2 Channels RS232 RS485 Wireless LAN Serial Device Server
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Wireless RS232 Transmitter RS485 to WiFi Converter Linux WiFi Serial Port Server
-
2016 New Arrival Cascaded In wall AP with POE wireless access point
-
Cascaded low power In Wall AP with POE
-
Long Range Wireless Access Point 300 Mbps In-Wall WiFi AP for Hotels
-
Hot Listed Inwall Wirelsss AP 300Mbps POE Wireless Access Points
-
Factory WiFi AP Module, Low Power High Speed POE WiFi access point
Product Details
| Place of Origin | Guangdong, China | Brand Name | Blueone/ Neutral/ Customized | |
| Model Number | WD-US |
Product Description
2 Channels RS232 RS485 Wireless LAN Serial Device Server
WiFi Serial Device Server is a mini server which realizes two-way transparent transmission between RS232/485 and WiFi.
Through WiFi serial device server, serial port devices with RS232/485 can be connected to the Internet over WiFi or Ethernet cable.
Thus, you can easily manage these serial devices from a mobile phone or computer over the Internet remotely.
System Hardware Information
Processor | Embedded MIPS24KEc |
Working frequency | 580Mhz |
Memory | 128MBytes DDR2 |
Flash | 32MBytes |
Network | 1 10M/100M |
WIFI | 802.11n 2.4 GHz 150M |
Emission power | 16.5DB |
RS232/RS485 | 2 Channel |
Bluetooth Connect | 7 Channel (Optional) |
Power Input | DC 9~28V |
Power consumption | 1A/12V |
Working temperature | -20~80℃ |
Storage temperature | -30 ~85℃ |
Operating humidity | 5 - 95%RH |
Package Size |
|
Certification | FCC/CE |
Network parameters
Speed | 10/100M Auto |
Electromagnetic isolation | 2KV |
Network Protocol | IP/TCP/UDP/DHCP/DHCPD/DNS/HTTP/SNMP |
MAX TCP Connectors | 4096 |
SDK Soft | PHP5.5 |
Setting Mode | Software / Webserver |
WiFi parameters
Frequency | 2.4G |
Interface | SMA RF Antenna |
Transmission power | +16.5 DB (802.11n) |
Sensitivity | -75DB (802.11n) |
Encryption | WPA/WPA2 TKIP/AES |
Transmission Distance | 400M |
Work Mode | Station/AP |
User Number | MAX 120 |
UART RS232 Information
RS232 Port | 1 |
Baud rate | 300~230400BPS |
Data bit | 5/6/7/8 Bits |
Stop Bit | 1/2 Bits |
Check | None/Odd/Event |
Buffer Size | 4MBytes |
Interface | DB9 Female Head and Male Pin |
UART RS485 Information
RS485 Port | 1 |
Baud rate | 300~230400BPS |
Data bit | 5/6/7/8 Bits |
Stop Bit | 1/2 Bits |
Check | None/Odd/Event |
Buffer Size | 4MBytes |
Interface | Two Line (A,B) |
Bluetooth (Optional)
Frequency | 2.4G |
SPP Channel | 7 |
Speed | MAX 3MBps |
Interface | SMA RF Antenna |
Emission power | 6.5DB |
Sensitivity | -103DB |
Support Bluetooth version | 4.0/3.0/2.1/2.0 |
|
|
|
~ Blueone products enjoy high quality and perfect after-sale services
~ Blueone provide quick shipment via various ways( DHL, UPS, FedEx, TNT, EMS, sea transportation, air transportation)
~ Blueone provide professional technical support and customized services
~ Free firmware upgrading
~ One year warranty
Payment methods: TT, Paypal, Western Union
