3mm-25mm Fireproof Magnesium Oxide Board(Mgo Board) With CE Certification
- 5000 Sheet / Sheets per Month
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Decorative Wall Board Magnesium Oxide Board mgo Board moisture Proof 18mm Flooring
-
2 Hour Fire Rated Partition Magnesium Oxide Wall Panel Suppliers
-
Fire Boards Magnesium Oxide Board Mgo Board America Quality Backer Boarrd jet magnum magboard UL
-
constrution board materials magnesium oxide board MGO Board
-
constrution board materials magnesium oxide board MGO Board
-
constrution board materials magnesium oxide board MGO Board
Product Details
Place of Origin | Zhejiang, China | Brand Name | Chinsunboard | |
Model Number | magnesium oxide board |
Product Description
3mm-20mm Fireproof Magnesium Oxide Board(Mgo Board) With Test Report
Magnesium Oxide Board Introduction
Mgo board is a kind of new green and fireproof building material which is used in place of traditional gypsum drywall as partition wall and ceiling covering material and sheathing. MgO boards could be used anywhere Gypsum boards or dry walls could be used, such as wall board, backer board, underlayment, siding etc. MgO boards do have many advantages over gypsum boards or dry walls which make them the material of choice for new constructions and renovations.
Raw Material and structure
Magnesium oxide(MGO), magnesium chloride, perlite, Wood dust, fiberglass mesh, non-woven cloth etc.
Please noted that we also can produce Chloridion Free Mgo board,further information please feel free to contact us!
Remark:Customers can also customize according to their own requirement,such as add one or two layers of fiber glass net reinforcing layer to increased the strength of the panel.
Specification and Product Data
Standard Size | 1220mmx2440mm or 1200mmx2400mm |
Max Width | 1220mm |
Max Length | 3050mm |
Thickness | 3mm-25mm |
Density | 0.8-1.2g/cm³ (Normal standard is 0.9-1.0g/cm³) |
Basic Color | White or Grey |
Surface | Thin slurry surface |
Moisture Content | ≤10% |
Water Absorbing | ≤40% |
Bending Strength | 12-25Mpa |
Fire Resistance | Incombustibility Class A1 |
Thermal Conductivity | 0.19W/(m·K) |
The rate of deformation | when pick up the moisture:0.26% |
The shrinking rate | when heated:1.0% |
Security | 100% does not include asbestos,formaldehyde,benzene |
Radioactivity | Not limited by the scope of application |
Edge:Square;Tapered; Chamfered; Tongue/Groove;

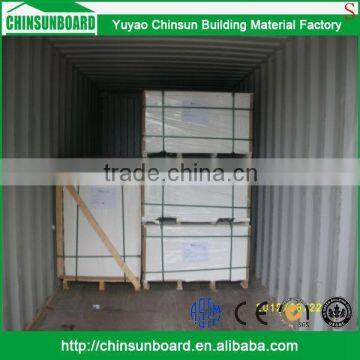

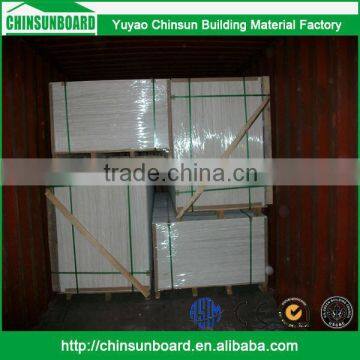

Packaging & Shipping
Size(MM) | Thickness(MM) | Weight(KGS) | Loading Quantity Per 20GP(PCS) |
1220*2440 | 3 | 9 | 1800 |
1220*2440 | 6 | 18 | 900 |
1220*2440 | 8 | 24 | 690 |
1220*2440 | 9 | 27 | 600 |
1220*2440 | 10 | 30 | 540 |
1220*2440 | 12 | 36 | 450 |
1220*2440 | 15 | 45 | 360 |
1220*2440 | 18 | 48 | 300 |
WHY so many customers choose Our mgo board?
Choose Chinsun board , choose green healthy life
1)Fireproof capability:the fireproof capability can be reached 2-3 hours, and it’s no combustion at 800ºC and no flame out at 1200ºC.
2)Sound and heat insulation:the Sound insulation will be more than 45db (depend on the structure), and it has a great performance on heat insulation
3)Shockproof:Fiberglass mesh inside the boards is designed to absorb shocks. It results in a shockproof and bend-proof board to increase durability.
4)Health concerns:MgO boards are Asbestos free,non toxicity and formaldehyde free.
5)Other advantages: Lighter,more flexible and stable than tradition sheeting systems;Time and material saving-dramatically reducitng construction costs;Environmentally friendly.
Our Service
24 hours online service.
Enquiry will be replied within 2 hours.
Five year warranty.
OEM service
FAQ
1. Q: Are factory tours available?
A: Yes, factory tours are available. We look forward to walking interested individuals through our manufacturing facility and introducing you to our unique product.
2. Q: Can load different size in one container?
A: Yes, We will help you to check the loading quantity for each size
3. Q: Are you factory or trading company?
A:We are one factory who has speicialized in the fireproofing materials for 20 years with ISO9001-2008, CE and other certificates.
4. Q: Do you need sample fee
A:We prepare the sample for free if you really need the samples to test, and you just pay the courrier fees.
5. Q: How to make order if I am satisfied with your products?
A:PLease send us your purchase information by email or fax, it's wise for you to ask the PI from us, pls note the following things in your requirments:
(1) Product information,- Quatity, specification, type, color, packing, and other requirements you want to get.
(2) Delivery time required:
(3) Shipping documents, we should get to know your information-company name, address, phone/fax,your destination port.
(4) If you have some forwarders in China,pls inform us your forwarders contact details after the goods have been ready.
