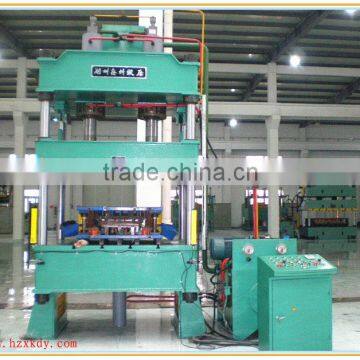

Y 32 four-column hydraulic press
- 100 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | xinke | |
| Model Number | Y32 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
SpecificationsY32 Series 4 Column Hydraulic Press
1, intuitive movement
2, high reliability, durability
3, small hydra
Specifications
Y32 Series 4 Column Hydraulic Press 1, intuitive movement 2, high reliability, durability 3, small hydraulic impact
Name: 4 Column Hydraulic Press
Characteristics of 4 Column Hydraulic Press:
1, Computer optimized design,3-beam&4-column compact structure; 2, Cartridge Valve Integrated System equipped in hydraulic control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design;3, Independent electrical control system with reliability, intuitive movement and convenient amendment ;4, Adopting Button common control; 5, Preset Stroke Forming or Preset Pressure Forming process can be selected
Applications of 4 Column Hydraulic Press:
Drawing, bending, flanging, cold extruding, blanking processes for metal materials; Adjusting, press-in and forming processes for powder and abrasive products, plastic and insulation materials
Technical Specifications of4 column hydraulic press
| Item type | Unit | Y32-40 | Y32-63 | Y32-100 | Y32-125 | Y32-200 | Y32-315 | Y32-400 | Y32-500 | Y32-630 | Y32-800 | Y32-1000 | Y32-1250 | |
| Nominal Pressure | kN | 400 | 630 | 1000 | 1250 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | |
| Ejecting Force | kN | 100 | 160 | 630 | 630 | 800 | 800 | 800 | 1000 | 1000 | 1250 | 2000 | 2000 | |
| Knock-out Force | kN | 150 | 125 | 160 | 180 | 360 | 450 | 345 | 570 | 850 | 720 | 1600 | 1200 | |
| The Max. Pressure of Working Fluid | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| The Max. Stroke of Slider | mm | 320 | 500 | 630 | 630 | 710 | 800 | 800 | 900 | 1000 | 1000 | 1000 | 1000 | |
| The Max. Stroke of Ejector | mm | 150 | 160 | 200 | 200 | 250 | 300 | 300 | 300 | 300 | 350 | 450 | 450 | |
| The Max. Opening Height | mm | 520 | 800 | 900 | 900 | 1120 | 1250 | 1250 | 1500 | 1600 | 1600 | 1600 | 1800 | |
| Speed of Slider | Descend | mm/s | 55 | 115 | 250 | 220 | 160 | 120 | 180 | 150 | 120 | 150 | 150 | 250 |
| working | mm/s | 10-35 | 10-22 | 12-40 | 9-31 | 7-24 | 8-20 | 10-24 | 10-24 | 8-18 | 8-15 | 5-12 | 8-15 | |
| Return | mm/s | 105 | 105 | 200 | 180 | 120 | 120 | 250 | 180 | 125 | 145 | 75 | 140 | |
| Speed of Ejector | Ejecting | mm/s | 170 | 90 | 120 | 60 | 60 | 75 | 120 | 65 | 65 | 50 | 60 | 45 |
| Return | mm/s | 450 | 220 | 125 | 125 | 120 | 150 | 120 | 135 | 135 | 120 | 120 | 120 | |
| Active Area of Working Table(E×D) | Left-Right | mm | 450 | 570 | 710 | 710 | 930 | 1260 | 1300 | 1400 | 1880 | 1880 | 2000 | 2500 |
| Front-Back | mm | 400 | 500 | 630 | 630 | 900 | 1200 | 1300 | 1400 | 1600 | 1600 | 1800 | 2000 | |
| Overall Dimension | Front-Back | mm | 1230 | 1850 | 2100 | 2200 | 2350 | 2840 | 3600 | 3840 | 5230 | 5550 | 5946 | 8000 |
| The Height between Working Table and Ground | Left-Right | mm | 1234 | 1855 | 1880 | 1880 | 2000 | 2000 | 2600 | 2800 | 2800 | 2600 | 3135 | 3400 |
| Front-Back | mm | 1115 | 2900 | 3260 | 3260 | 3520 | 4175 | 4800 | 4960 | 5257 | 5630 | 5614 | 7600 | |
| Height above the Ground | mm | 870 | 800 | 860 | 860 | 550 | 650 | 710 | 500 | 500 | ||||
| Electric Motor Power | kW | 5.5 | 5.5 | 11 | 11 | 15 | 22 | 30 | 44 | 44 | 60 | 74 | 90 | |
| Weight of Machine | t | 1.5 | 2.7 | 4 | 41 | 10 | 13 | 17 | 21 | 33 | 43 | 52 | 76 | |
Options of 4 Column Hydraulic Press:
Cutting Dampening system; Oil heating/cooling unit; Displacement sensor; Industrial touching screen monitor; PLC programmable controller; Floating guide-way and rolling bracket for die exchange; Working area lighting; Quick die clamping device; Light curtain safety device
Products of 4 Column Hydraulic Press:
