Home > Products > Molybdenum products > Molybdenum Wire for Edm

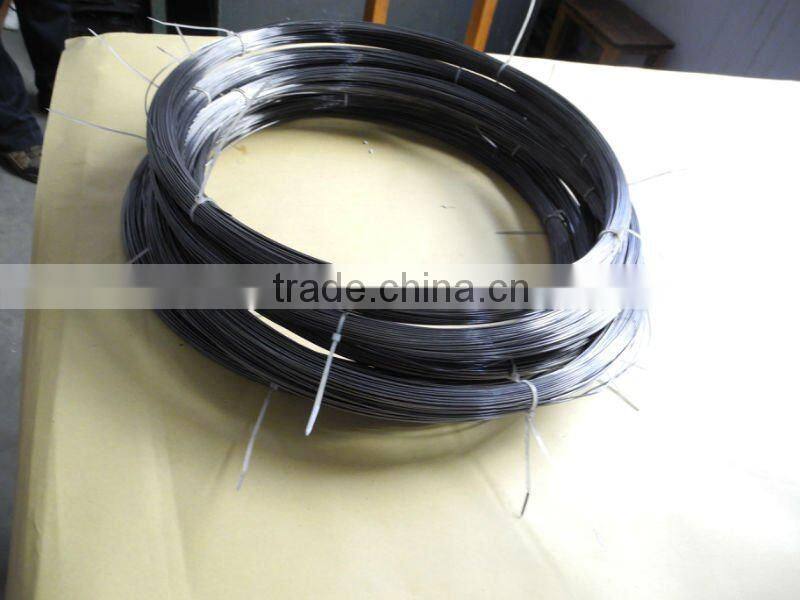

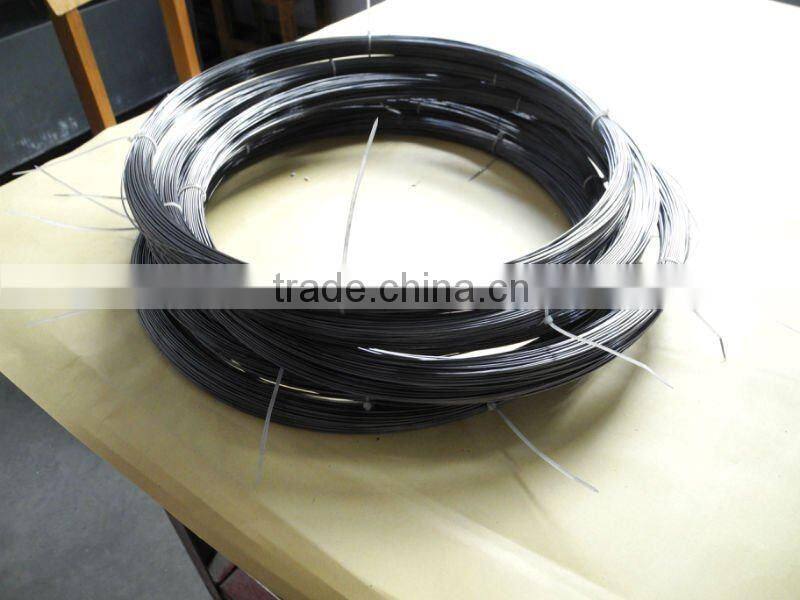

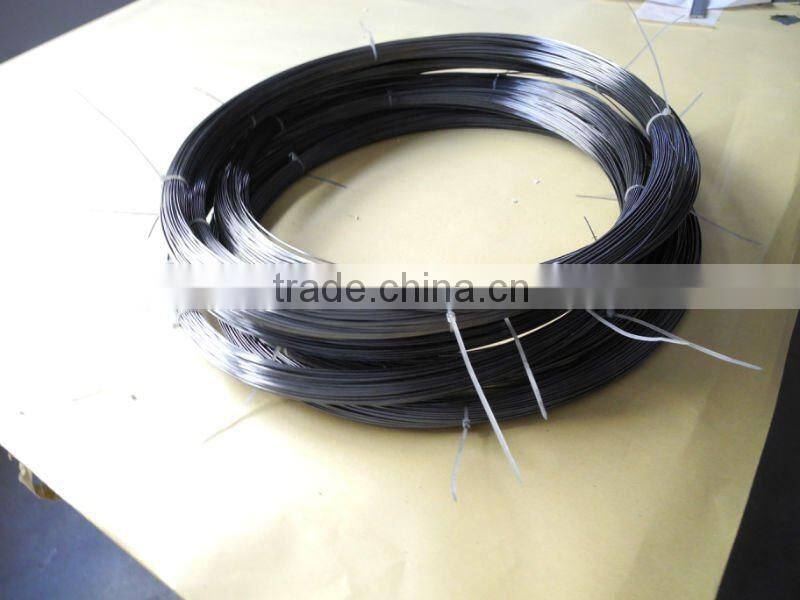

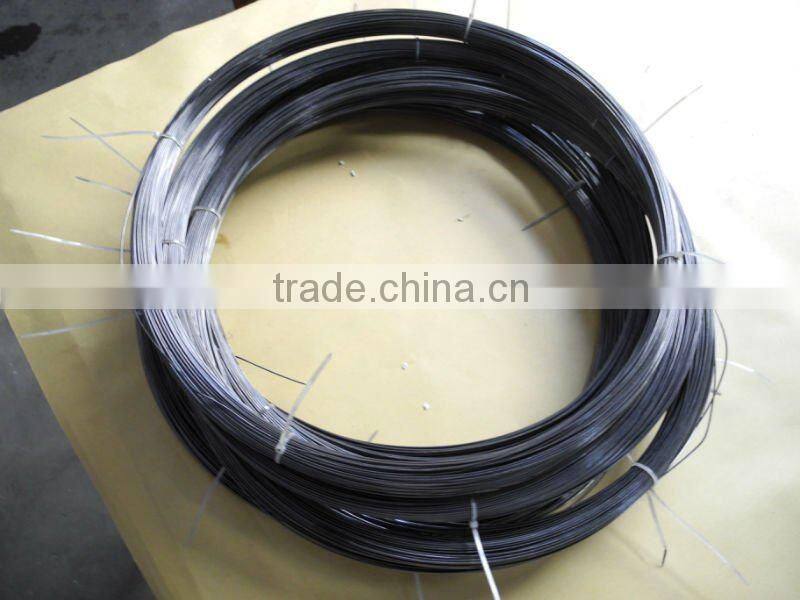

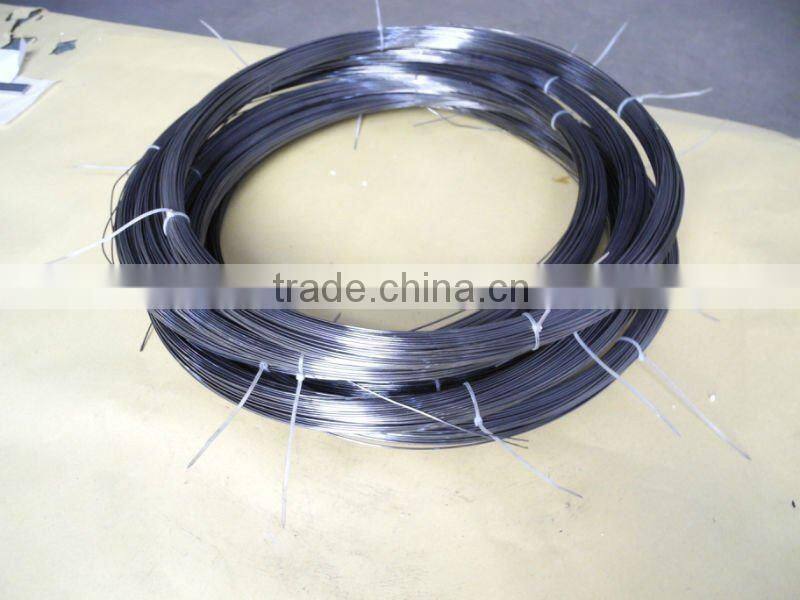

Molybdenum Wire for Edm
- Beijing Tianjin
- T/T L/C
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Luoyang Tuojing Refractory Metal Co.,Ltd | |
| Model Number | MO-1 | Application | Industrial furnace and medical | |
| Shape | wire | Material | Pure molybdenum | |
| Dimensions | 0.3mm~0.8mm*L | Chemical Composition | Pure molybdenum |
Product Description
Specifications
1.Appearance:Silver gray metallic luster2.Standard:ASTM B 386-2003
3.Density:>=10.2g/cm3
4.Size:0.3mm<=Dia<=0.8mm
1.Appearance:Silver gray metallic luster
2.Standard:ASTM B 386-2003
3.Density:>=10.2g/cm3
4.Specifications:
Moly Wire is a key part for extra high furnace application, it has higher creep resistance,thermal stability to keep stable. Mo Wire is a key part for Monocrystalline Silicon growing furnace application, it has higher creep resistance,thermal stability and better ductility after high-temperature use.
5.Products Show:
6.Product Compision:
| LUOYANG TUOJING TEST REPORE(MO≥ 99.95%) | ||
Si<0.002 | K | S |
Al<0.0006 | Na | C |
| Fe<0.004 | Ca<0.0015 | O < 0.008 |
| Cu | Pb<0.0003 | N < 0.002 |
| Mg<0.0007 | Bi<0.0003 | |
| Ni<0.002 | Sn<0.0002 | |
| Mn | Sb<0.0005 | |
| P<0.001 | Cd<0.0003 | |
7.Application:
Mo has a unique property of which it's melting point can reach 2610 degree C. Mo Wire is widely applied in high temperature vacuum furnace melting environment such as sapphire growing furnace, quartz glass melting furnace, and Monocrystalline Silicon growing furnace based on it’s higher creep resistance, thermal stability and better ductility after high-temperature use. The working temperature of Mo wire is above 1500 degree C. For Monocrystalline Silicon growing furnace, high-purity, high-density, higher thermal stability with other features of exact measurement and smooth surface has decisive influence on the success of crystal growth, quality control of pulling crystal, discharging and service life during sapphire growing process.
8.Ceritficate of Quality:
