H Frame Hydraulic Press

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Hydraulic	Place of Origin	Zhejiang, China
Brand Name	Xinke	Model Number	HY61
Power(W)	22kW-111kW	Weight	200t-1250t
Certification	ISO9001-2000

Product Description

Specifications

H frame hydraulic press
1,Computer optimized design
2, high direction precision
3, eccentric load resistance

Name: H frame hydraulic press

Characteristics of H frame hydraulic press :

1,Frame structure with small working table, High body strength, economic and practical

2,Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design

3, Independent electrical control system adopted Japanese imported Mitsubishi PLCwith reliability, intuitive movement and convenient amendment

4, Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation

5, Preset Stroke Forming or Preset Pressure Forming process can be selected. High control precision, especially for extrusion forming of shaft parts and tooth parts

Apllications of H frame hydraulic press :

Suitable for extrusion and forming of shaft parts, tooth parts and plate type parts with high forming precision, saving material, and also suitable in heating extrusion industry if equipped heating system

Technical Specifications of H frame hydraulic press

Item Type			HY61-200	HY61-315	HY61-400	HY61-500	HY61-630	HY61-800	HY61-1000	HY61-1250
Nominal Pressure		kN	2000	3150	4000	5000	6300	8000	10000	12500
Knock-out force		kN	360	300	350	570	630	970	660	1520
Below Ejecting Force		kN	400	500	630	630	800	1000	1000	1500
The Max. working Pressure of Hydraulic		Mpa	25	25	25	25	25	25	25	25
Main Cylinder Stroke		mm	350	350	350	400	450	500	500	900
Stroke of Below Ejector Cylinder		mm	200	200	200	200	200	200	200	300
The Max. Opening between Slider and Working Table		mm	600	600	650	700	800	850	850	1500
Active Area of Working Table		mm×mm	580x700	620×700	720x720	720x800	800x880	860x920	860x1000	1300x1300
Speed of Slider	Quick Descend	mm/s	300	300	350	350	280	300	300	180
	Slow Descend	mm/s	12-30	10-25	10-25	10-25	10-23	10-22	10-20	8-24
	Return	mm/s	160	250	250	210	180	200	280	200
Speed of Ejector	Ejecting	mm/s	150	150	150	100	75	120	110	120
Speed of Ejector	Return	mm/s	230	200	200	130	110	160	200	130
Main Electric Motor Power		kW	22	30	37	44	60	74	74	111
Weight		t	8	10	12	14	21	25	28	45

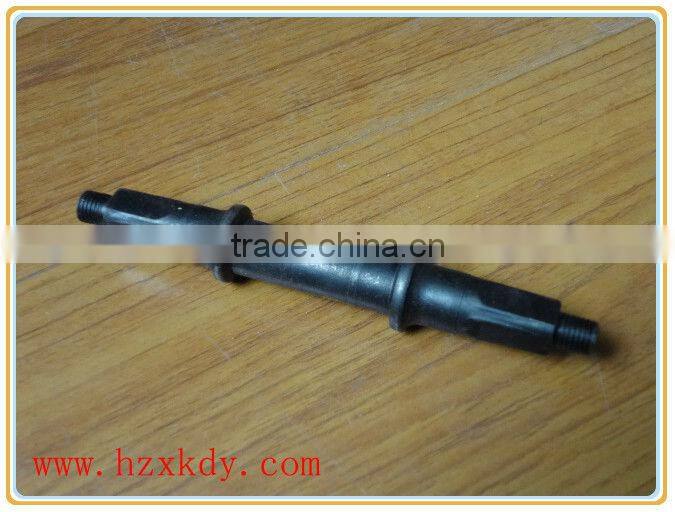

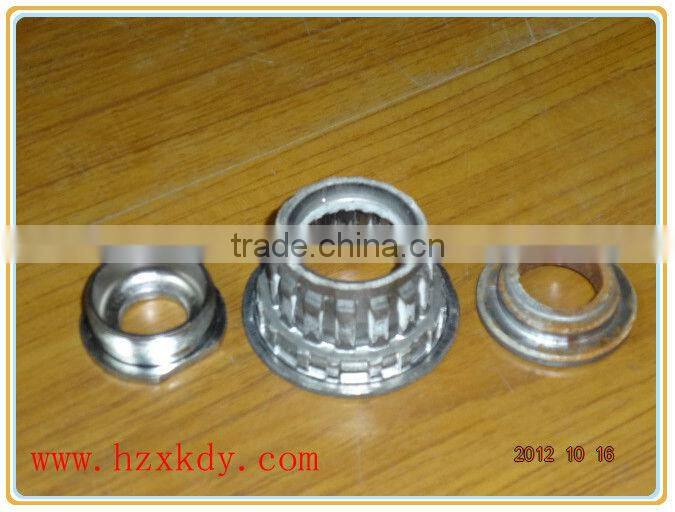

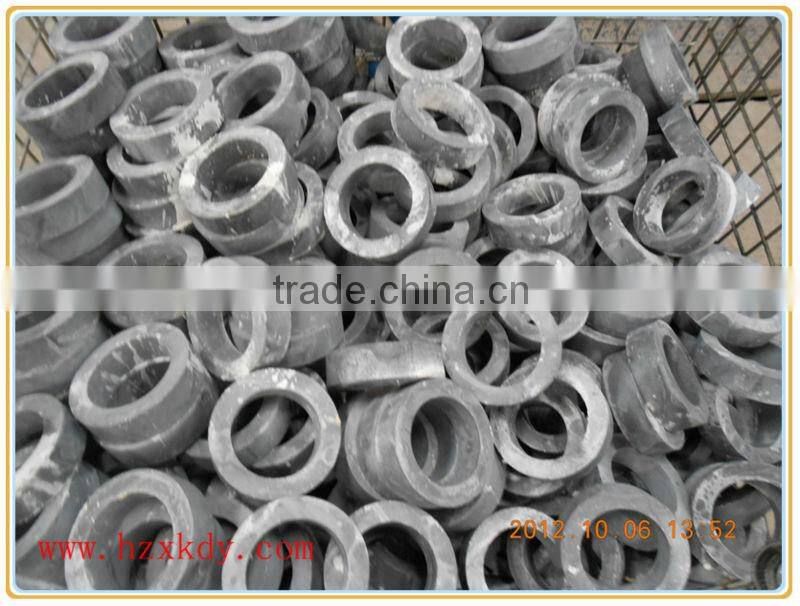

The products of H frame hydraulic press
