Hydraulic Press for Automobile Press Line
- Shanghai
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Hydraulic | Place of Origin | Zhejiang, China | |
| Brand Name | xinke | Model Number | HY27 | |
| Voltage | 380v | Power(W) | 52.6kW-385kW | |
| Weight | 400T | Dimension(L*W*H) | see design | |
| Certification | ISO9001-2000 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
hydraulic press for automobile press line1, Simple Structure
2, High Production Efficiency
3, Suitable and reliable

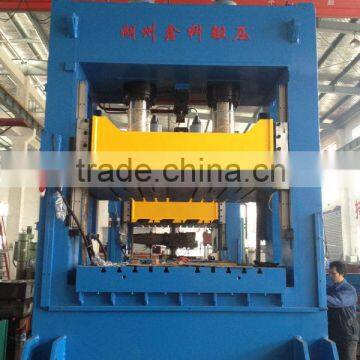

hydraulic press for automobile press line
Characteristic of hydraulic press for automobile press line :
1,Whole or separate or tie-bar gantry type with high rigidity and precious;
2, 8-fold guide way feature high direction precision and electric load resistance performance;
3,Imported oil cylinder sealing components with high reliability and long life time;
4,High idle speed and quick working speed for high production efficiency ;
5,Equipped with proximity switch or displacement sensor for reliable and precise stroke control;
6,Control system based on PLC, sensitivity, reliability and flexibility.
Applications of hydraulic press for automobile press line :
Suitable for drawing, bending, forming, stamping and flanging processes, especially for the following fields:
1, Automobile parts productions: vehicle bodywork, brake disc, oil tank, chassis, rear axle and bumper, etc.
2, Household Electronic: Washing machine parts, electric cooker, TV set parts, refrigerator parts;
3, Kitchen utensils: kitchen sinks, pots, stainless steel articles and other containers;
4, others: tractor, motorcycle, aircraft and aerospace industry.
Technical Specification of hydraulic press for automobile press line
| Items Type | Unit | HY27-315 | HY27-500 | HY27-630 | HY27-800 | HY27-1000 | HY27-2000 | |
| Nominal Pressure | kN | 3150 | 5000 | 6300 | 8000 | 10000 | 20000 | |
| Knock-Out Force | kN | 300 | 810 | 600 | 830 | 1300 | 2100 | |
| Hydraulic Cushion Force | kN | 1500 | 2000 | 3150 | 3000 | 4000 | 8000 | |
| Buffering Power | kN | 800*2 | 1000*2 | 1500*2 | 3000*2 | 4000*2 | ||
| The Max. Working Pressure of Fluid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | |
| The Max.Distance between Working Table and Slider | mm | 1200 | 1500 | 1500 | 1600 | 2000 | 1800 | |
| Load-Bearing of Moving Working Table | t | 20 | 10 | 30 | 50 | |||
| Moving Speed of Working Table | mm/s | 50 | 60 | 50 | 50 | |||
| Moving Distance Of Working Table | mm | 2000 | 2200 | 3000 | 2800 | |||
| Slider Stroke | mm | 800 | 1000 | 1000 | 1000 | 1500 | 1300 | |
| Hydraulic Cushion Stroke | mm | 300 | 300 | 300 | 400 | 400 | 400 | |
| The Height between Working Table and Ground | mm | 600 | 600 | 600 | 600 | 600 | 645 | |
| Speed of Slider | Downstream | mm/s | 300 | 200 | 350 | 250 | 400 | 350 |
| Pressing | mm/s | 12-26 | 12-25 | 12-28 | 10-25 | 5-10 | 18-38 | |
| Return | mm/s | 280 | 140 | 300 | 250 | 300 | 300 | |
| Speed of Hydraulic Cushion | Rising | mm/s | 55 | 55 | 50 | 60 | 150 | 80 |
| Size of Working Table | Left-Right | mm | 1500 | 2500 | 2500 | 3000 | 4000 | 4000 |
| Front-Back | mm | 1200 | 1800 | 2000 | 1800 | 2400 | 2500 | |
| Size of Hydraulic Cushion | Left-Right | mm | 1000 | 1950 | 1800 | 2000 | 2850 | 3200 |
| Front-Back | mm | 800 | 1200 | 1200 | 1100 | 1850 | 1700 | |
| Size of Machine | Front-Back | mm | 2818 | 3900 | 4150 | 5600 | 9005 | 9065 |
| Left-Right | mm | 3610 | 4200 | 4480 | 5330 | 6340 | 8900 | |
| Height above Ground | mm | 6515/5297 | 7900/6200 | 8100/6350 | 8800/6720 | 10050/7750 | 10600/8000 | |
| Electric Motor Power | Kw | 52.6 | 60 | 110 | 121 | 240 | 385 | |
Options of hydraulic press for automobile press line :
Moving Table; Proportional regulation for slide speed and force; Proportional regulation for cushion force; Cutting dampening system; Light curtain safety device; Oil heating/cooling unit; Industry touching screen monitor; Displacement sensor; Floating guide-way and rolling bracket for die exchange; non-recycling column slide device; Working area lighting.
