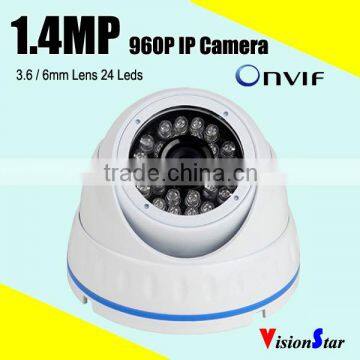

3.6mm board lens 960p 1.4mp 24pcs leds ip security camera onvif top quality network digital camera
- Shenzhen
- Credit Card PayPal
You May Like
-
960p bullet ir cctv security camera night vision ip66 p2p security ip camera
-
Board 3.6/6mm lens imx238 1.4mp 960p dome ip camera
-
IR Outdoor Security Bullet Waterproof 3.6mm board Lens 720P 1.0MP CCTV Network IP Camera
-
Board 3.6mm lens imx238 1.4mp 960p dome ip camera
-
Plug and play home security cctv dome IP camera 4mp HD 1080P
-
Home surveillance security network cctv dome 4mp ip camera
Product Details
Place of Origin | Guangdong, China | Brand Name | Visionstar | |
Model Number | VS-V5214IR-IP | Type | IP Camera | |
Style | Dome Camera | Sensor | CMOS | |
Technology | NetWork | Special Features | Other, metal dome indoor camera |
Product Description
Product shows:
Features
1. 1.4Megapixels Color Dome IP camera
2. 1/3” CMOS Sensor SONY IMX238 + HI3518C, high definition 1280 x 960
3. Board Lens 3.6mm or 6mm optional
4. Built-in IR-CUT filter, day night auto switch
5. Advanced H.264 video compression, achieving ultra low bit rate, superb high-definition picture quality.
6. Support various information superimposed(such as DDNS etc.)
7. Support dual-stream
8. Plug and play, with multiple cloud service
9. Support various mobile monitoring (Iphone, Symbian, Android etc.)
10. Support multiple web browser (IE,Chrome,Firefox,Safari), support 2 users log into at the same time
11. Support auto electronic shutter, adapt to different monitoring environment
12. Built-in Web server enables the use of a standard Web browser for viewing and management
13. Standard ONVIF 2.2, support HVR, NVR connection and storage
Parameters
Camera | |
Model No. | VS-V5214IR-IP |
Camera Type | Color IR Weatherproof IP Camera |
Image Sensor | 1.4MegaPixels 1/3” CMOS Sensor SONY IMX238 |
Main Processor | HI3518C |
Resolution | 960P |
Effective Pixels | 1280(H) X 960(V) 1.4MP |
Min illumination | Color 0.01LuxF1.2; B/W 0.001LuxF1.2 (IR ON) |
Lens | Board Lens 3.6mm |
IR Led | 24pcs |
IR Distance | 20M |
Day / Night | Built-in IR-CUT filter, Day / Night Auto Switch |
S/N Ratio | ≥50db(AGC OFF) |
WDR | DWER, >100db |
Compression Standard | |
Compression Format | H.264/MJPEG |
Main Stream | 1280*1024, 1-25(30)FPS; 1280*960, 1-25(30)FPS; 1280*720, 1-25(30)FPS; |
Sub Stream | 720*576, 1-25(30)FPS |
640*480, 1-25(30)FPS | |
Compression Rate | 32 Kbps~16Mbps Continuously adjustable,support CBR/VBRs |
Subtitle Overlay | Support Channel Name, Date/Time, Stream information Overlay, position is adjustable |
Network &Storage | |
Storage | Network, HVR, NVR |
Video Recording | Manual, Auto( Loop, Timer, Alarm, Motion Detection) |
Alarm | FTP, E-mail, IE, CMS software |
Support Protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP,NTP,PPPOE,SMTP, UPNP |
Onvif | Standard Onvif 2.2 |
Remote View | Support remote view by IE6.0 or above browser (Built-into Web server), support 16 users log into at the same time(MAX) |
Mobile View | Support Windows Mobile, iPhone, iPad, Android system |
Interface | |
Ethernet | 10M / 100M mbps Ethernet (RJ-45) |
General standard | |
Temperature and Humidity | -10°C~50°C, humidity less than 95%(no condensation) |
Power Supply | DC12V±10% / PoE(optional) |
Dimension(mm) | 105mm x 65mm |
Weight | 0.32KG |
Delivery
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
Service
Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.
