Home > Products > TFT LCD Display > 2.8 inch qvga 240*320 hdmi rgb touchscreen lcd with 30pin

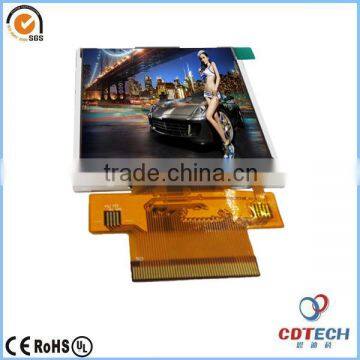

2.8 inch qvga 240*320 hdmi rgb touchscreen lcd with 30pin
USD $10 - $15
/ Piece
100000 Pieces(Min. Order)
- HK
You May Like
-
2.8-inches mini hd LCD panel, LCD monitor with RGB/MCU connector lcd display
-
2.8 inch QVGA 240*320 TFT mini hd LCD panel, Tiamma coverglass
-
Factory price TFT LCD 2.4' inch 240*320 bar type small size color tft lcd display
-
Small size TFT LCD 2.2 inch 176*220 lcd monitor with factory price
-
Small size TFT LCD 2.0 inch color lcd display module with factory price
-
Top Vendor 7.0 inch 1204x 600 TFT LCD module+ capacitive Touch with FFS mode angle view
Product Details
| Place of Origin | Guangdong, China | Brand Name | CDTech | |
| Model Number | S028Q02 tft display | Type | Other, TFT, 2.8 inch tft display |
Product Description
Product Description
Factory supply 2.8 inch tiny hd qvga 240*320 TFT LCD display
Gneral specifications
Feature | Spec | |
Characteristics | Size | 2.8inch |
Resolution | 240(horizontal)*320(Vertical) | |
Interface | MCU-18/16/9/8Bit RGB-18Bit | |
Connect type | Connector | |
Color Depth | 65k | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.18 x 0.18 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normally White | |
Driver IC | ILI9341 | |
Surface Treatment | 3H | |
Viewing Direction | 6 O’clock | |
Mechanical | LCM (W x H x D) (mm) | 50.0*69.2*2.55 |
Active Area(mm) | 43.2*57.6 | |
With /Without TSP | With outTSP | |
Weight (g) | TBD | |
LED Numbers | 4 LEDs | |
Drawing and image show
