Home > Products > Dome CCTV Camera > Motion detection 700tvl ccd sensor sony Effio-E 3.6mm board lens cctv security camera

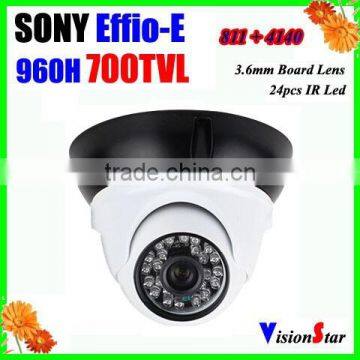

Motion detection 700tvl ccd sensor sony Effio-E 3.6mm board lens cctv security camera
- Shenzhen
- Credit Card PayPal
You May Like
-
New high performance super wrd 800tvl sony Effio-V DSP OSD menu vandalproof dome cctv camera
-
Plastic sony Effio-V 800tvl 960h ccd 30pcs ir leds manual zoom lens 2.8-12mm dome ir security camera
-
800TVL CCTV Camera Sony Effio Varifocal Lens Camera Manual Zoom 2.8-12mm IR Cut Video Surveillance Home Alarm System
-
CCTV Camera Housing Systems 0.001Lux IR Leds Surveillance CCTV Camera Sony CCD (ICX810/1AKA) Infrared Camera OSD Menu Day&Niight
-
2.8-12mm CCTV Lens Video Camera CCD Chip (ICX810/1AKA) Wireless Hidden Video Day & Night IR-Cut Alarm System Camera
-
Multi Language OSD Menu DAY & Night Security Camera Vandalproof 0.001 Lux Infrared Camera Outdoor 36pcs IR Leds Video Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Visionstar | |
| Model Number | VS-V5172IR | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Infrared | Special Features | Vandal-proof |
Product Description
Special recommendation:
About Effio-E 700TVL CCTV Camera, there are two programs:
1. 4140+811: 1/3"Sony Super HAD CCD II (ICX810/1AKA) + Effio-E DSP (CXD4140GG)
Low illumination at 0.01Lux good night vision
2. 4140+673: 1/3"Sony Exview HAD CCD II (ICX672/3AKA) + Effio-E DSP (CXD4140GG)
Low illumination at0.001Lux much better night vision
1/3"Sony 960H Super HAD CCDII
Effio-E DSP CXD4140GG + ICX810/1AKA
High Resolution 700TVL, 0.01LUX
OSD/2D-DNR/BLC/MD/Privacy Masking
3.6mm Board Lens
24pcs LED, IR Range more than 20M
Day/Night Vision Security Dome Camera
Model No. | VS-V5172IR |
Camera Type | Color Vandalproof IR Camera |
Image Sensor | 1/3"SONY Super HAD CCDⅡ |
Effective Pixels | PAL:976(H) x 582(V)570K NTSC:976(H) x 494(V)480K |
Signal System | PAL /NTSC |
Horizontal Resolution | 700 TV Lines |
Min. Illumination | 0.01 LUX/F1.2 |
Lens Mount | 3.6mm Board Len/F1.2 |
Iris Control | Auto/Manual |
S/N | ≥52Db (AGC OFF) |
OSD Menu | Support |
Language | 8 languages (EN, FR, DT, ES, POR, CN, RCN, RUS,JP) |
White Balance | Push/User/Antic/Manual/Push lock/ATW |
Picture Adjust | Mirror/Brightness/Contrast/Sharpness/HUE/Gain |
ATR | Yes |
Motion Detection | Yes |
Privacy Mask | 4 masks |
Day & Night | Color / B/W / Auto |
Noise Reduction | 2D-NR |
HLC | Yes |
AFD | Yes |
SYNC | Internal |
Shutter | PAL:1/60(Sec.)~1/100,000(Sec.); |
Infrared Luminary | 24 pieces IR-LED |
Infrared Wavelength | 850 nm |
Illuminate Distance | 20M |
Waterproof Criterion | IP66 |
I/O Connector | Power : DC Power Jack , Video Output : BNC |
Video Output Level | 1.0 Vp-p (75 Ohms, composite) |
Supplied Voltage | DC12V Voltage |
Power Consumption | IR On: 280mA max., IR Off: Less than 130mA |
Dimensions | 110mm x 80mm |
Weight | Approx. 0.85kg |
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.
