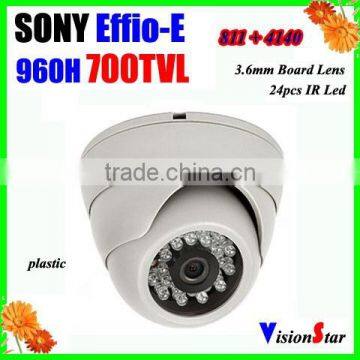

700TVL 1/3"Sony super 960h ccd effio-e CXD4140gg day/night with OSD menu small dome camera
- Shenzhen
- Credit Card PayPal
You May Like
-
Security dome camera 24pcs ir leds Sony Effio-E 700TVL 3.6mm board lens OSD menu indoor camera
-
Color security cctv camera module 960h 700tvl sony Effio-E 811+4140 motion detection 2.8-12mm varifocal lens metal video camera
-
Mini video cameras 811+4140 sony Effio-E 700tvl 960h ccd 30pcs ir leds with osd menu plastic camera for indoor using
-
Sony Effio-E 4140gg 700tvl 960h ccd with osd menu varifocal lens 2.8-12mm motion detection infrared security ir dome camera
-
Motion detection 700tvl ccd sensor sony Effio-E 3.6mm board lens cctv security camera
-
New high performance super wrd 800tvl sony Effio-V DSP OSD menu vandalproof dome cctv camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | Visionstar | |
| Model Number | VS-D3172IR | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Infrared | Special Features | Other, Plastic |
Product Description
Special recommendation:
About Effio-E 700TVL CCTV Camera, there are two programs:
1. 4140+811: 1/3"Sony Super HAD CCD II (ICX810/1AKA) + Effio-E DSP (CXD4140GG)
Low illumination at 0.01Lux good night vision
2. 4140+673: 1/3"Sony Exview HAD CCD II (ICX672/3AKA) + Effio-E DSP (CXD4140GG)
Low illumination at0.001Lux much better night vision
1/3"Sony 960H Super HAD CCDII
Effio-E DSP CXD4140GG + ICX810/1AKA
High Resolution 700TVL, 0.01LUX
OSD/2D-DNR/BLC/MD/Privacy Masking
3.6mm Board Lens
24pcs LED, IR Range more than 20M
Day/Night Vision Security Dome Camera
Model No. | VS-D3172IR |
Camera Type | Color plastic IR Camera |
Image Sensor | 1/3"SONY Super HAD CCDⅡ |
Effective Pixels | PAL:976(H) x 582(V)570K NTSC:976(H) x 494(V)480K |
Signal System | PAL /NTSC |
Horizontal Resolution | 700 TV Lines |
Min. Illumination | 0.01 LUX/F1.2 |
Lens Mount | 3.6mm Board Len/F1.2 |
Iris Control | Auto/Manual |
S/N | ≥52Db (AGC OFF) |
OSD Menu | Support |
Language | 8 languages (EN, FR, DT, ES, POR, CN, RCN, RUS,JP) |
White Balance | Push/User/Antic/Manual/Push lock/ATW |
Picture Adjust | Mirror/Brightness/Contrast/Sharpness/HUE/Gain |
ATR | Yes |
Motion Detection | Yes |
Privacy Mask | 4 masks |
Day & Night | Color / B/W / Auto |
Noise Reduction | 2D-NR |
HLC | Yes |
AFD | Yes |
SYNC | Internal |
Shutter | PAL:1/60(Sec.)~1/100,000(Sec.); |
Infrared Luminary | 24 pieces IR-LED |
Infrared Wavelength | 850 nm |
Illuminate Distance | 20M |
Waterproof Criterion | IP66 |
I/O Connector | Power : DC Power Jack , Video Output : BNC |
Video Output Level | 1.0 Vp-p (75 Ohms, composite) |
Supplied Voltage | DC12V Voltage |
Power Consumption | IR On: 280mA max., IR Off: Less than 130mA |
Dimensions | 94mm x 73mm |
Weight | Approx. 0.50kg |
We use a color box for camera, then use another carton box to pack it carefully. Our shipping time is 3-5 working days, by DHL, UPS, TNT, Fedex, EMS or Aramex. The price not including any tax rate caused in destination country's Customs.
Each item will be tested and checked before shipping, for any problems after you received,such as damage, defective, please contact us immediately for helping, and please don't heasitate to contact us for any unsatisfyingbefore you open a dispute, we will try our best to offer you a reasonable solution.
