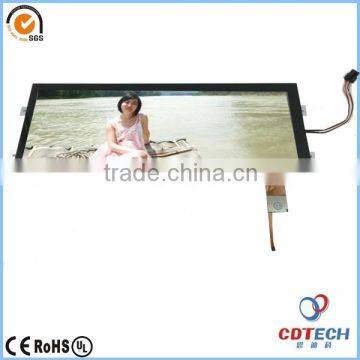

OEM 12.3 inch TFT LCD Touch Screen Monitor With Infrared Touch

FOB Price

US$ 150 - 500 / Piece

1 Piece(Min. Order)

Port HK
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CDTech
Model Number	S123WU01-CT4-25		Type	TFT

Product Description

Feature	Item	OEM 12.3 inch TFT LCD Touch Screen Monitor With Infrared Touch
Characteristics	Size	12.3 inch
	Resolution	1920(Horizontal)*720(Vertical)
	Interface	LVDS
	Connect type	Connector
	Color Depth	16.7M
	Technology type	a-Si
	Display Spec. Pixel pitch (mm)	0.05075(H)×RGBx0.15225(V)
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	Driver IC	ILI6480
	Surface Treatment	3H
	Viewing Direction	ALL
Mechanical	LCM (W x H x D) (mm)	308.1134.866.5
	Active Area(mm)	292.32 x109.62
	With /Without TSP	Without
	Weight (g)	TBD
	LED Numbers	80 LEDs

Products Drawing:

CDTech Company

CDTech Products Pictures

CDTech Product list

P/N	Size	Resolution	P/N	Size	Resolution
S032HV04	3.2"	320*480	S035VR14-T	3.5"	480*640
S035Q01	3.5"	320*240	S035HV09	3.5"	320*480
S035Q01-T	3.5"	320*240	S035HV09H	3.5"	320*480
S035Q03-T	3.5"	320*240	S035HV12	3.5"	320*480
S035Q08-T	3.5"	320*240	S035HV13	3.5"	320*480
S035Q09	3.5"	320*240	S035HV13H	3.5"	320*480
S035Q09-CTP	3.5"	320*240	S039WQ01	3.9"	480*128
S035Q13-T	3.5"	320*240	S040WV04	3.95"	480*800
S035Q24	3.5"	320*240	S042WQ01	4.2"	240*432
S035LQNC111	3.5"	320*240	S043WQ02	4.3”	480*272
S035LQNC111-CT	3.5"	320*240	S043WQ07	4.3”	480*272
S035LQNC211	3.5"	320*240	S043WQ08	4.3”	480*272
S035LQNC116	3.5"	320*240	S043WQ09	4.3”	480*272
S035V01	3.5"	480*640	S043WQ018HB	4.3”	480*272
S035V01-T	3.5"	480*640	S043WQ15	4.3”	480*272
S035V03	3.5"	480*640	S043WQ21	4.3”	480*272
S035V03-T	3.5"	480*640	S043WQ24	4.3”	480*272
S035V04	3.5"	480*640	S043WQ24H	4.3”	480*272
S035V04-T	3.5"	480*640	S043WQ26H	4.3”	480*272
S035VR10	3.5"	480*640	S043WQ26H-CT6	4.3”	480*272
S035VR10-T	3.5"	480*640	S043WQ28	4.3”	480*272

P/N	Size	Resolution	P/N	Size	Resolution
S043WQ36H	4.3”	480*272	S050WV43-CT5	5.0"	800*480
S043WQ40H	4.3”	480*272	S056V01	5.6"	640*480
S043WQ49	4.3”	480*272	S057Q01	5.7"	320*240
S043WQ55	4.3”	480*272	ma	5.7"	640*480
S043WQ56	4.3”	480*272	S057V02	5.7"	640*480
S043WQ56H	4.3”	480*272	S057V03	5.7"	640*480
S043WQ56HS	4.3”	480*272	S058WV01	5.8"	800*320
S043WV07	4.3”	800*480	S060FW03	6.0"	480*854
S046WV01	4.6"	800*320	S065WV01	6.5"	800*320
S046WV02	4.6"	800*320	S065WV02	6.5"	800*320
S046WV03	4.6"	800*320	S070WV20	7.0"	800*480
S050WQ06	5.0"	480*272	S070WV83 V.1	7.0"	800*480
S050WQ06-T	5.0"	480*272	S070WV83 V2.0	7.0"	800*480
S050WQ06-CT	5.0"	480*272	S070WV84	7.0"	800*480
S050WQ07	5.0"	480*272	S070WV85-CT8	7.0"	800*480
S050WV02	5.0"	800*480	S070WV92	7.0"	800*480
S050WV06	5.0"	800*480	S070WV94	7.0"	800*480
S050WV07	5.0"	800*480	S070WV94H	7.0"	800*480
S050WV43	5.0"	800*480	S070WV95/97	7.0"	800*480
S050WV44	5.0"	800*480	S070WV98	7.0"	800*480
S050WV44H	5.0"	800*480	S070WV101	7.0"	800*480
S050WV43-T	5.0"	800*480

P/N	Size	Resolution	P/N	Size	Resolution
S070WS03	7.0"	1024*600	S101WS09	10.1	1024*600
S070WS08	7.0"	1024*600	S101WX06	10.1	1280*800
S070WS12	7.0"	1024*600	S101FH01	10.1	1280*800
S070WS14	7.0"	1024*600	CDT101PUW1-A00/S101WU01	10.1	1920*1200
S070WX02	7.0"	800*1280	S091WX02	10.1	1920*480
S070WU01	7.0"	1200x1920	S104V01	10.4"	800*600
S072WX01	7.2	1280*384	S104SX01	10.4"	800*600
S080SV01	8.0"	800*600	S104SX02	10.4"	800*600
S080SV03H	8.0"	800*600	G104VN01 V1	10.4"	640*480
S080SV04H-L	8.0"	800*600	S104XG01	10.4"	1024*768
S080SV05H	8.0"	800*600	S104XG02	10.4"	1024*768
S080XG04	8.0"	1024*768	S104SV05H	10.4"	800*600
S080XG04H V2	8.0"	1024*768	S088WX03	10.8	1280*320
S072WX02	8.2	1280*384	S088WU02	11.8	1920*480
S088WX01	8.8	1280*320	S121SDS01	12.1"	800*600
S090WV02	9.0"	800*480	S121WX03	12.1"	1280*800
S091WX01	9.1	1920*480	S123WU01	12.3"	1920*720
S072WX03	9.2	1280*384	S150XG01	15.0"	1024*768
S088WX02	9.8	1280*320	S170XG01	17"	1024*768
S101WS07	10.1	1024*600	S190XG01	19"	1024*768
S101WS08	10.1	1024*600	M220ZGE-L20	22"	1680*1050

Our Workshops

The Exhibition that we attend

FAQ

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.

Q: 4.How long is the warranty?
A:12 Months.

Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.

Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.

Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for

your second confirmation. if sample is ok, finally we will go to mass production.
