Air Pressure Booster System
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SHINEEAST | |
| Model Number | GBS-GPV02 | Theory | Reciprocating Pump | |
| Structure | Piston Pump | Usage | Air Pump | |
| Power | Pneumatic | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Application | Metering |
Product Description
Specifications
Rugged constructionCertificate: ISO9001
No electrical power and installations are required
Pressure pulsation rates

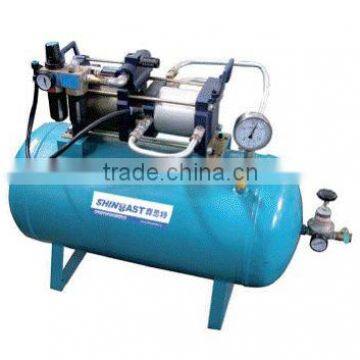

The Air Pressure Booster unit includes model GBS-GPV02-T and it is a complete pneumatic system designed to provide double the available compressed shop air pressure and momentary high flow.
They feature air pressure booster fitted with an air control unit comprising of a filter, pressure regulator with pressure gauge and an air shut-off valve, and an air tank. So the desired operation pressure and flow can be preset by the means of the air control unit in correspondence with different pressure ratios.
Ideal for use with machines or applications where higher pressure is required than the compressed airline system available.
We can also offer you a choice between a standard Air Pressure Booster System or a customized solution.
Applications
l Provide air powered tools and machines in large factories with marginal central air pressure systems
l Air pressure boosting in tools for operation of pneumatic clamps, cylinders and many other equipments
Type | GBS-GPV02-T |
Air drive pressure (bar) | 3-5 |
Pressure ratio | 2:1 |
Outlet pressure (bar) | 6-10 |
Air drive connection | 1/2” |
Air inlet connection | 1/2” |
Air outlet connection | 1/2” |
Air tank capacity( L) | 160 |
