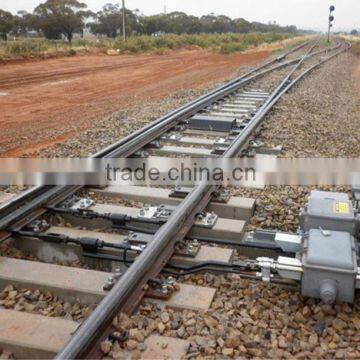

Conventional railway turnouts 50kg 1 in 8 with casting crossing
US$ 50 - 5,000
/ Piece
2 Pieces(Min. Order)
- Tianjin
- T/T
You May Like
Product Details
| Type | Other, railway turnout | Material | High manganese steel | |
| Dimensions (L x W x H) (mm) | standard | Place of Origin | Hebei, China | |
| Brand Name | SHWEDO | Model Number | 50kg |
Product Description
Specifications
railway turnoutsconsist of switch and stockrail assemblies, a V crossing and checkrails, linked together closure rail
Conventional railway turnouts are special trackwork that allows trains to pass from one track on to a diverging path. Conventional turnouts consist of switch and stockrail assemblies, a “V” crossing and checkrails, linked together by straight and curved closure rails (infill and end infill). We can supply conventional turnouts to meet all industry standards in the following configurations:
- Rail size: 50kg,60kg,43kg and so on
- Bearer type: Timber or concrete
- Switch type: Heeled or Flexible (Standard or heavy duty)
- Track guage: 1435mm,1600mm,1067mm
- Crossing rate: 6,7,8,9,10,12,15,25
- Crossing type: Curved or straight
- Crossing variety: Fabricated, RBM, Compound (CrV), Fully cast Monoblock (Mn)
- Special geometry and rail type
