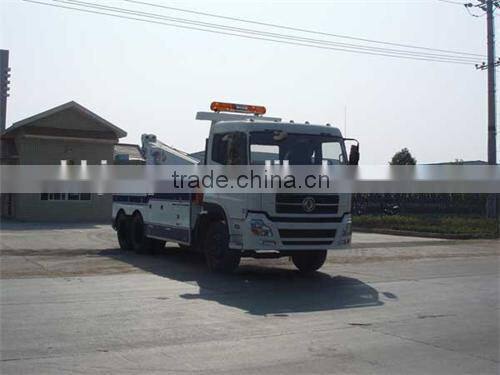

Dongfeng Tianlong 6x4 Heavy-duty Towing and Lifting Wrecker

Basic Information

Vehicle name

Tow Truck

Chassis:

DFL1250A8

Outline size(L×W×H)  (mm)

9100*2480*3600

Cargo inline size(L×W×H)(mm):

/

Rating mass(kg)

/

Empty mass(Kg):

19305

Full mass(kg)

25000

Emission standard

Euro 3

Engine Information

Model

ISDe270 30

Type

6 Cylinder Diesel engine

Power/displacement(KW/ML)

198(269HP)/6700

Manufacture

Cummins

Chassis Information

Wheelbase(mm):

4350+1300

,4350+1350

Axle load(kg) F/R

7000/18000

Tire

10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5

Max speed (km/h):

80/90

Front overhang(mm)

1460

Rear overhang(mm)

2350/2300

Front track(mm)

1986,2040

Rear track(mm)

1860/1860

Approach angel(°)

20

Departure angle(°)

16

Steering

Power steering

Brake

Air brake

Cabin

2/3

Special function

Maximum lifting of quality(kg): 16000

Effective length (mm):2800

Maximum lifting height(mm):9800

Rated lifting quality(kg):5500

Telescopic crane travel(mm): 3000

Full extend maximum lift quality(kg):3850

Rated traction winch(kg):10000

The rated supporting lead quality(kg):25000

The length of wire rope(m):45

Trade terms

Quote Lifetime

30days (we promise the quote is effective in the lifetime!)

Payment terms

1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading.

2.  Letter of credit payment for some countries and regions.

Deliver time

30workdays

MOQ

1set

Supply quantity

3,000sets/month

Package

waxing
