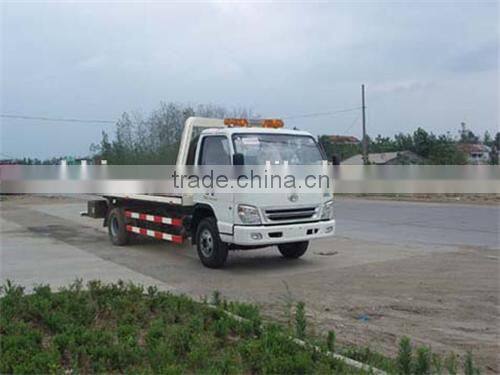

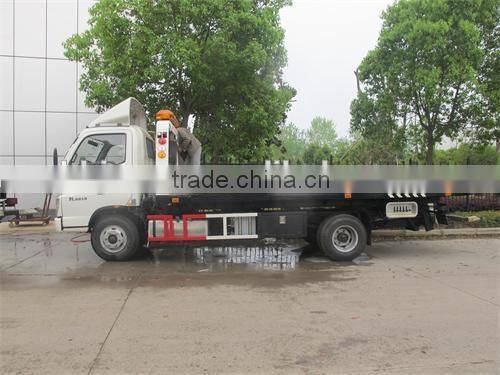

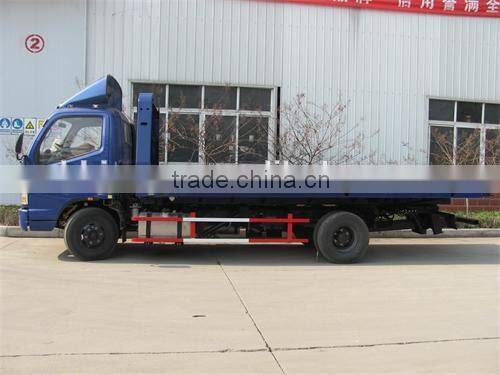

Hot Sale Forland Flatbed Tow Truck

Summary  Hot line( 0086-18727938399 Fax: 0086-0722-3330262

Basic Information

Vehicle name

Tow Truck

Chassis:

BJ1083VDJFA

Outline size(L×W×H) (mm)

7350*2320*2540

Cargo inline size(L×W×H)(mm):

/

Rating mass(kg)

/

Empty mass(Kg):

5200

Full mass(kg)

8495

Emission standard

Euro 3

Engine Information

Model

YZ4DB1-30

Type

6 Cylinder Diesel engine

Power/displacement(KW/ML)

95(137HP)/4087

Manufacture

Yangzhou

Chassis Information

Wheelbase(mm):

3800

Axle load(kg) F/R

3400/5095

Tire

7.50-16,8.25-16,7.50R16,8.25R16

Max speed (km/h):

80/95

Front overhang(mm)

1120

Rear overhang(mm)

1890

Front track(mm)

1688

Rear track(mm)

1630/1600

Approach angel(°)

21

Departure angle(°)

20

Steering

Power steering

Brake

Air brake

Cabin

3

Special function

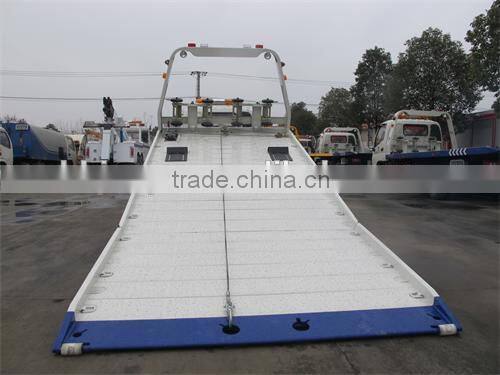

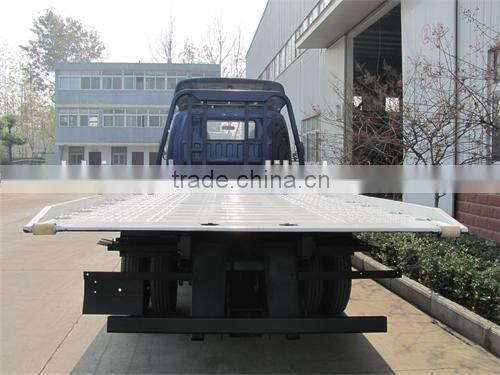

Flat length x width(mm): 5330*2330

Effective length(mm): 1300

Flat Stroke(mm): 2680

Rated lifting quality(kg):3100

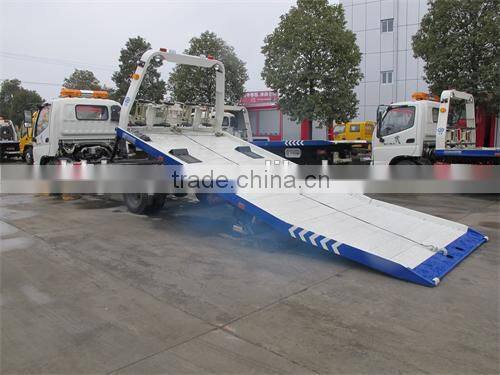

Flat minimum inclination angle(°): 8

Full extend maximum lift quality(kg):2200

Flat maximum bearing quality(kg):3500

The rated supporting lead quality(kg):6495

Rated traction winch(kg): 4000

The length of wire rope(m): 25

Trade terms

Quote Lifetime

30days (we promise the quote is effective in the lifetime!)

Payment terms

1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading.

2. Letter of credit payment for some countries and regions.

Deliver time

30workdays

MOQ

1set

Supply quantity

3,000sets/month

Package

waxing
